Component Inspection

Automatic Transaxle
P0741 Torque Converter Clutch Circuit Performance or Stuck Off - Inspection/Repair:_:Component Inspection

Component Inspection

Check TCC Solenoid Valve
1. Connect GDS.
2. IGNITION "ON", ENGINE "OFF".
3. Select Torque Converter Solenoid Valve in Actuation Test and Perform Actuation Test.

Specification :Operation

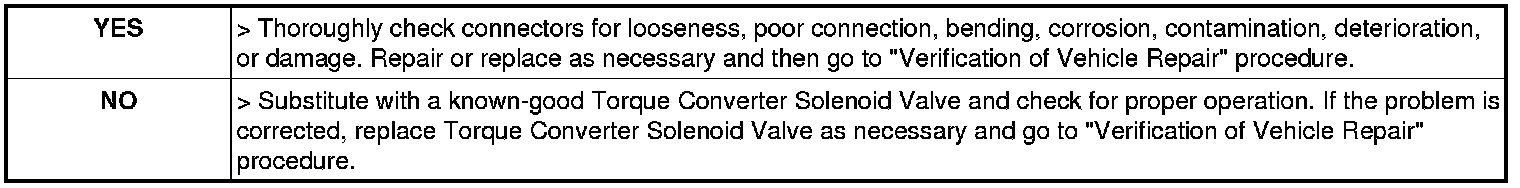

4. Does the solenoid valve operates when actuation test ?
