P0735 Gear 5 Incorrect Ratio - Scantool Diagnostics

Monitor GDS Data

Stall Test
** It is difficult to do "STALL TEST" in 5th gear, so that Go to "signal check" procedure.
OPERATING ELEMENT OF EACH SHIFTING RANGE





X : WORKING.
◆ : PARTICIPATE IN DELIVERY TORQUE WHEN COAST DRIVING.
O : SUPPLING OIL PRESSURE TO ELEMENT, BUT NOT EFFECT ON OUTPUT.
�. : TEMPORARY WORKING.
Signal Check
1. Connect GDS.
2. Engine "ON".

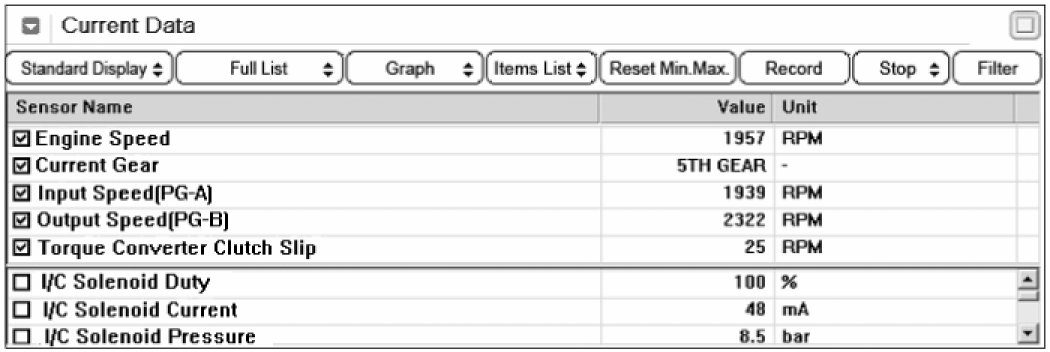

3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the GDS.
4. Accelerate the Engine speed until about 2000 rpm in the 5th gear.

Specification :INPUT SPEED - (OUTPUT SPEED • 5th GEAR RATIO) ≥ 200 RPM




5. Does "INPUT & OUTPUT SPEED SENSOR" within specifications?
