Component Inspection

Automatic Transaxle
P0734 Gear 4 Incorrect Ratio - Inspection/Repair:_:Component Inspection

Component Inspection

1. Connect GDS.
2. Engine "ON".

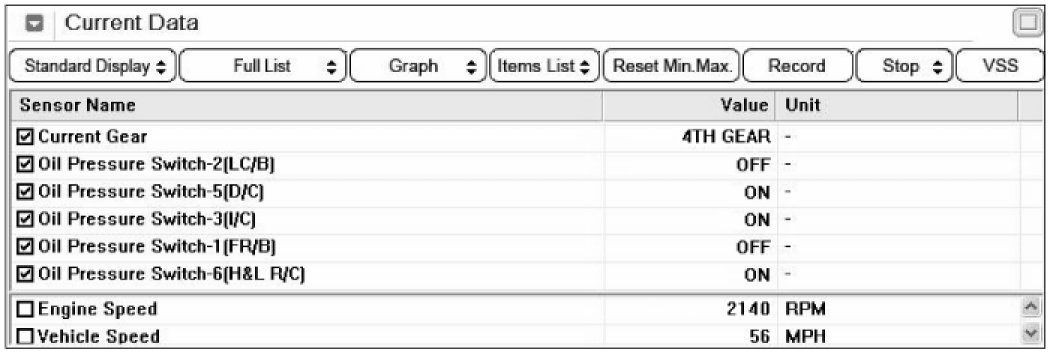

3. Monitor the "OIL PRESSURE. S/W 1,2,3,5,6" parameter on the GDS.
4. Move select lever to "D" range and operate vehicle within 4th gear condition.




5. Does "OIL PRESSURE. S/W 1,2,3,5,6 " follow the reference data?
