Scantool Diagnostics

Automatic Transaxle
P0733 Gear 3 Incorrect Ratio - Scantool Diagnostics

Monitor GDS Data

Stall Test
** It is difficult to do "STALL TEST" in 3rd gear, therefore Go to "Signal Check" as follow.
Signal Check
1. Connect GDS.
2. Engine "ON".

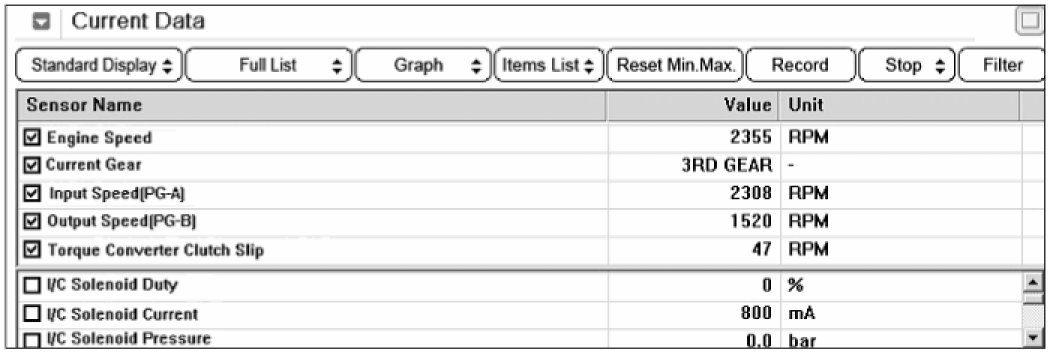

3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the GDS.
4. Accelerate the Engine speed until about 2000 rpm in the 3rd gear.

Specification :INPUT SPEED - (OUTPUT SPEED • 3rd GEAR RATIO) ≥ 200 RPM

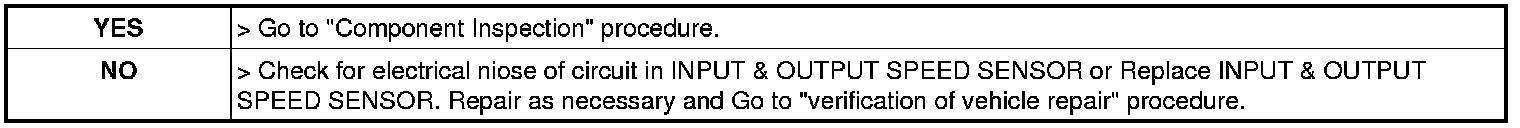

5. Does "INPUT & OUTPUT SPEED SENSOR" within specifications?
