P0717 Input/Turbine Speed Sensor - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to data link connector(DLC)
2. Engine "ON".
3. Monitor the "INPUT SPEED SENSOR 1" parameter on the GDS.
4. Drive the vehicle over 40 Km/h.

Specification :Increasing Gradually




























Fig 1) "P,N" range

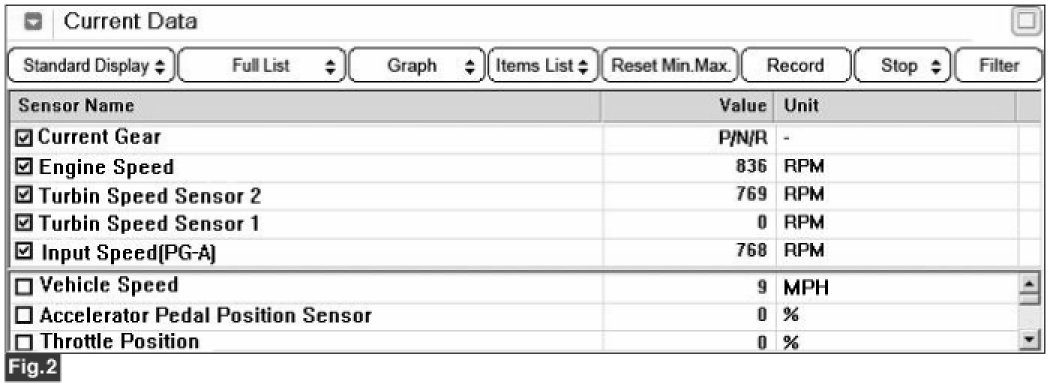

Fig 2) "R" range
Fig 3) "D" range 1st gear
Fig 4) "D" range 2nd gear
Fig 5) "D" range 3rd gear

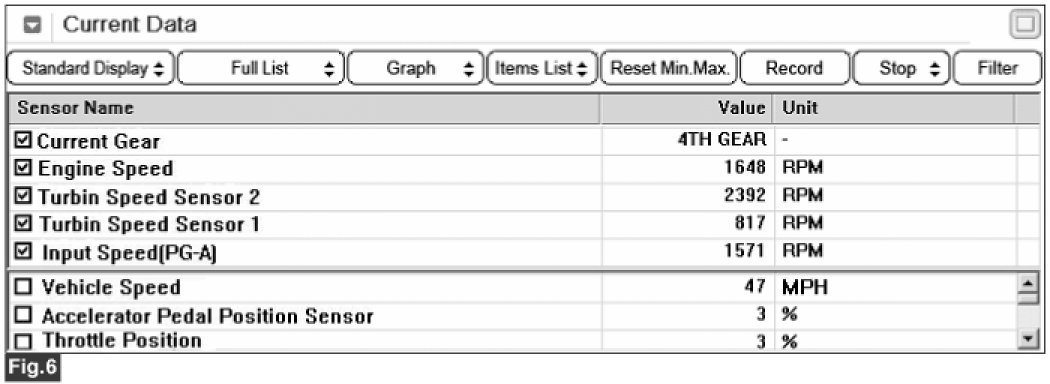

Fig 6) "D" range 4th gear
Fig 7) "D" range 5th gear
5. Does "INPUT SPEED SENSOR " follow the reference data?
