P0716 Input/Turbine Speed Sensor - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF".
2. Disconnect "ATM Control Unit(CLG01-C)" connector.
3. Connect GDS and select 'Simulation Function"on the scanner.
4. Simulate duty pulse on signal terminal of "Input Speed Sensor 2" with scanner.
** In a case of Input Speed Sensor 1, it is impossible to execute the simulation function.








Fig 1) 150Hz Output -> 224rpm
Fig 2) 250Hz Output -> 352rpm
** The values are subject to change according to vehicle model or conditions

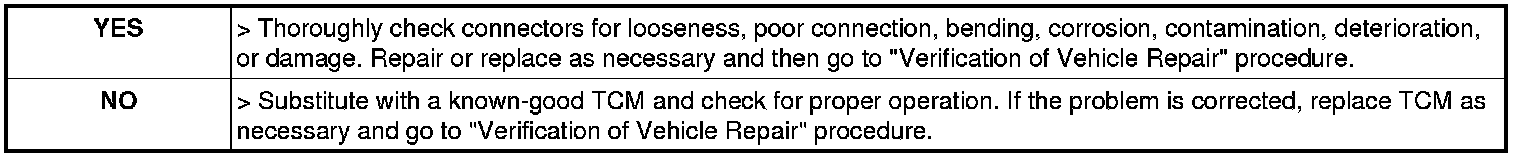

5. Is "Input Speed Sensor 1& 2" signal value changed according to simulation frequency?
