General Information

Automatic Transaxle
P0713 Transmission Fluid Temperature Sensor - General Information

Component Location





General Description

The automatic transmission fluid(ATF) temperature sensor A is installed in the INHIBITOR SWITCH and fluid(ATF) temperature sensor B is installed in the valve body. The TCM supplies a 5V reference voltage to the sensor, and the output voltage of the sensor changes when the ATF temperature varies.

DTC Description

This DTC is for checking sensor failure. This code is set if the temperture data from Oil Temperture sensor is fixed between -20°C and 0°C or 0°C and 20°C for 10min. after driving a vehicle.

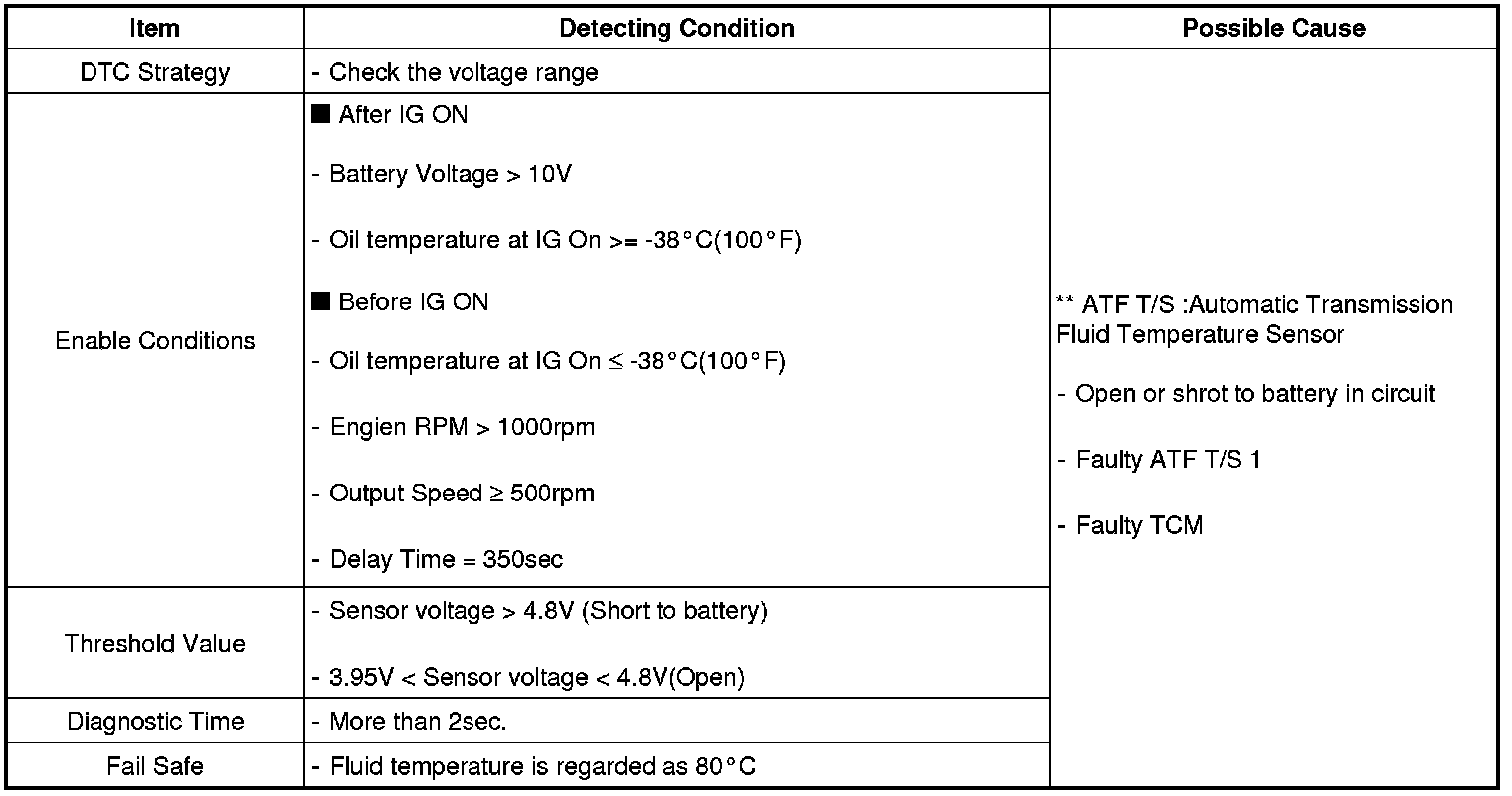

DTC Detectiong Condition

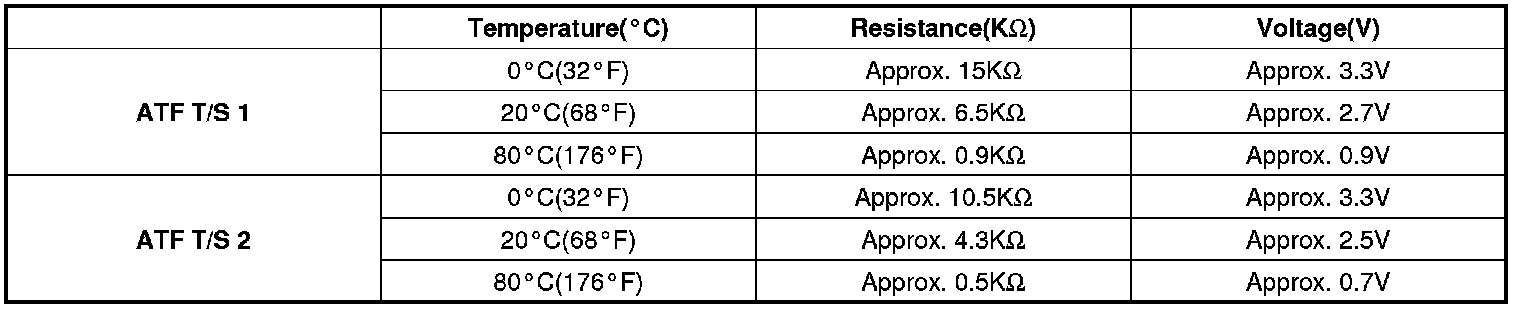

Specification





Diagnostic Circuit Diagram
