Scantool Diagnostics

Automatic Transaxle
P0712 Transmission Fluid Temperature Sensor - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to data link connector(DLC)
2. Engine "ON".
3. Monitor the "TRANSAXLE FLUID TEMPERATURE SENSOR "1" parameter on the GDS.

Specification :Increasing Gradually

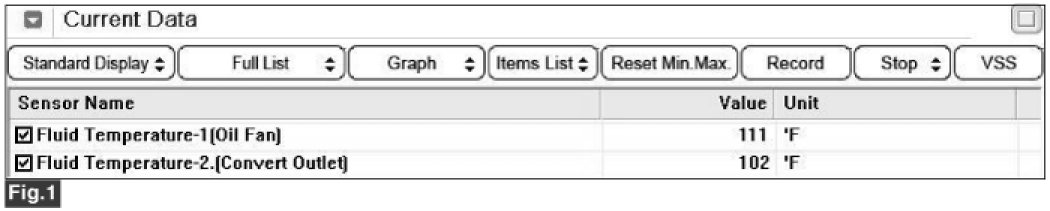

Fig 1) Normal Data

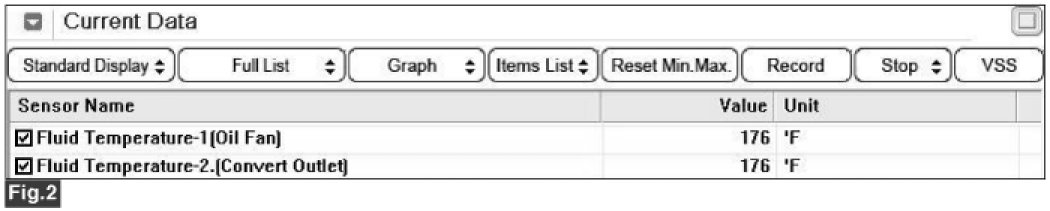

Fig 2) Open or short Data
4. Does "TRANSMISSION FLUID TEMPERATURE SENSOR " follow the reference data?
