W/Harness Inspection

Automatic Transaxle
P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input) - Inspection/Repair:_:W/Harness Inspection

Terminal & Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?

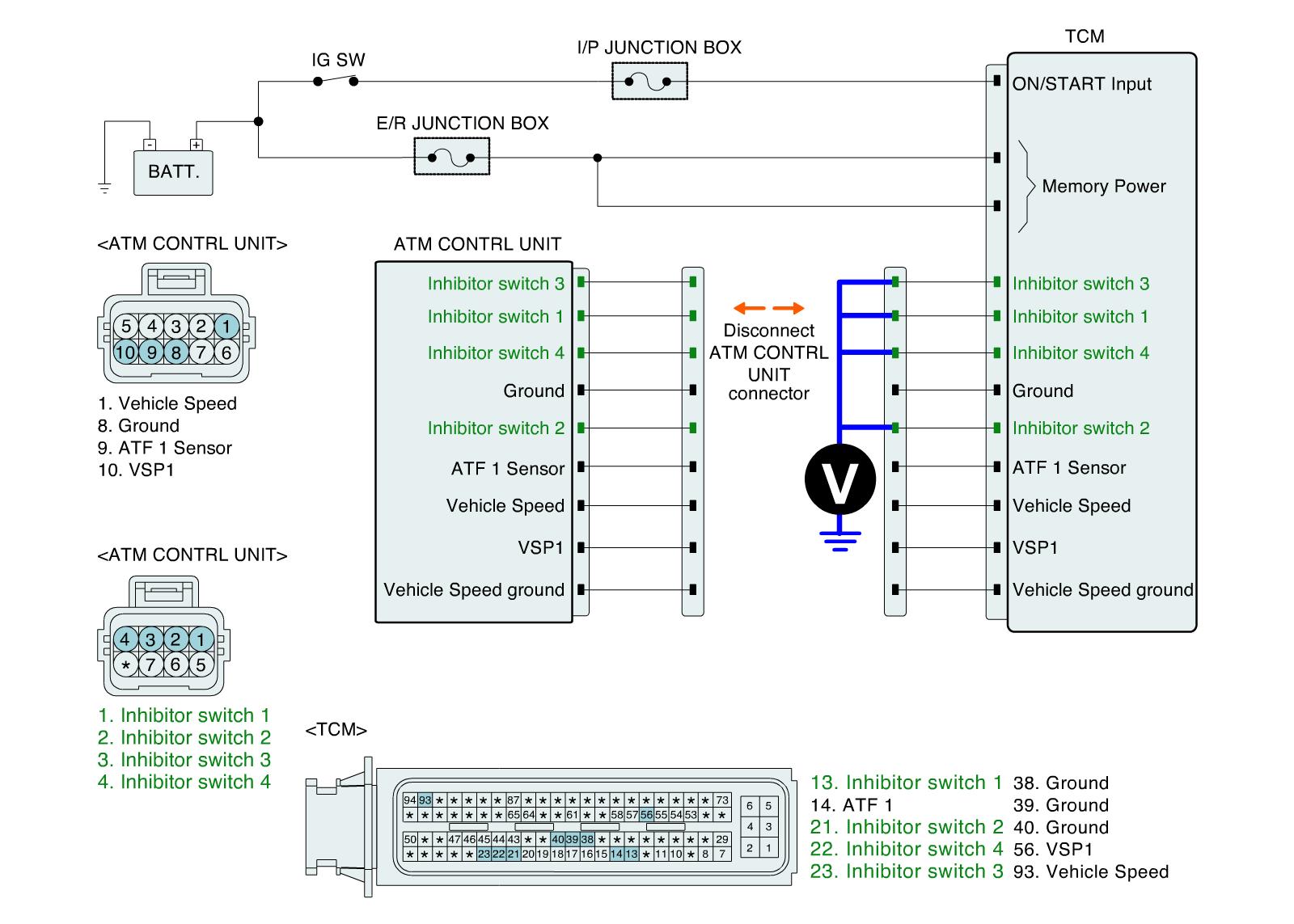

Signal Circuit Inspection

1. Disconnect ATM control Unit connector.
2. Ignition "ON" & Engine "OFF".
3. Measure voltage between each range terminal of ATM control Unit connector and chassis ground with shifting from P to D range one by one.

Specification :Battery Voltage

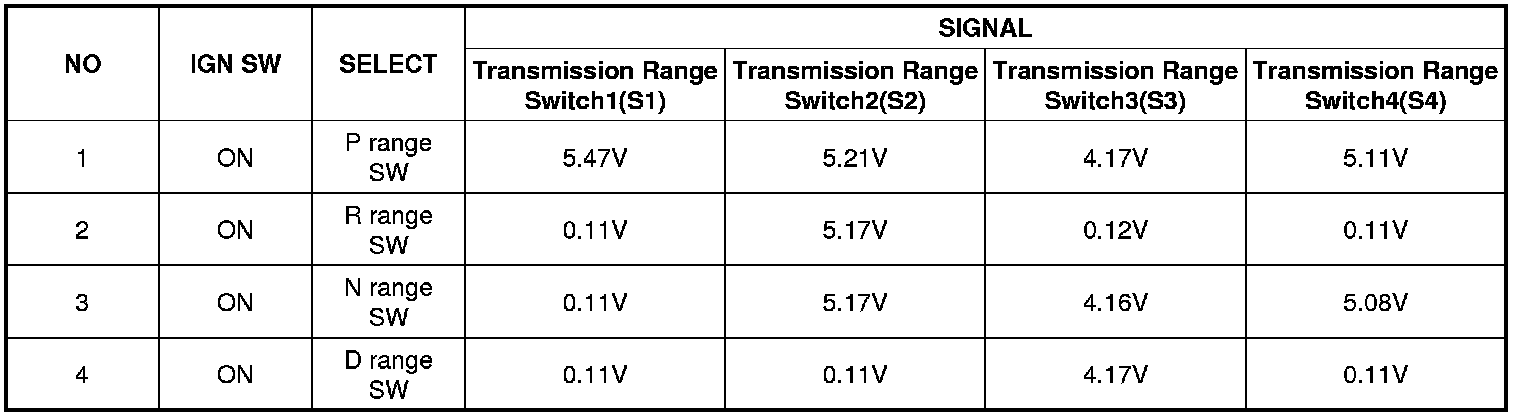

Transmission Range Switch Combination

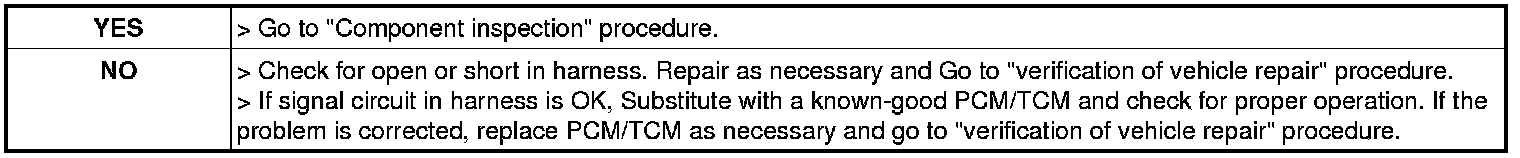

4. Is the measured voltage within specifications?
