Scantool Diagnostics

Automatic Transaxle
P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input) - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to data link connector(DLC)
2. Ignition "ON" & Engine "OFF".
3. Monitor the "TRANSMISSION RANGE SWITCH" parameter on the GDS.
4. Move selector lever from "P" range to "D" range.

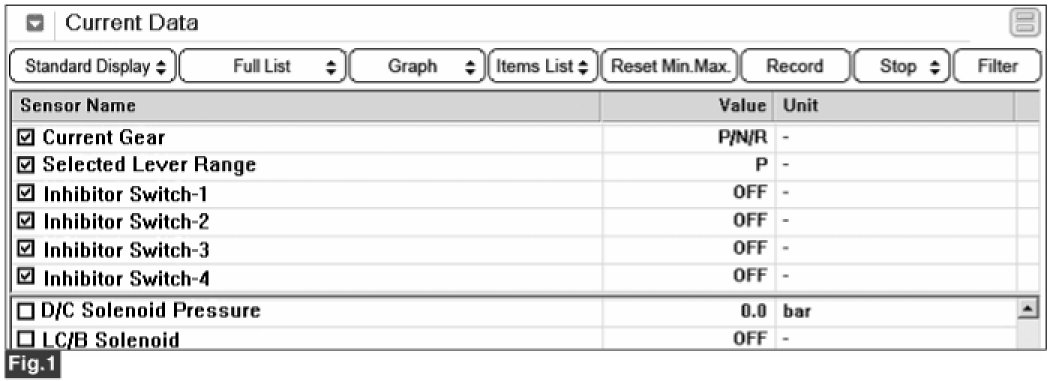

Fig 1) P range
Fig 2) R range

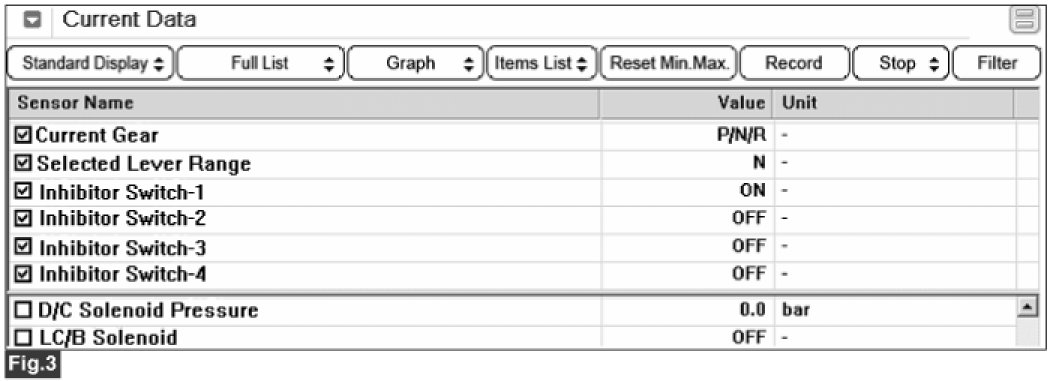

Fig 3) N range
Fig 4) D range
5. Does "TRANSMISSION RANGE SWITCH" follow the reference data?
