P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input) - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG "OFF" & Engine "OFF".
2. Disconnect ATM control Unit(T01-1 & T01-3) connector.

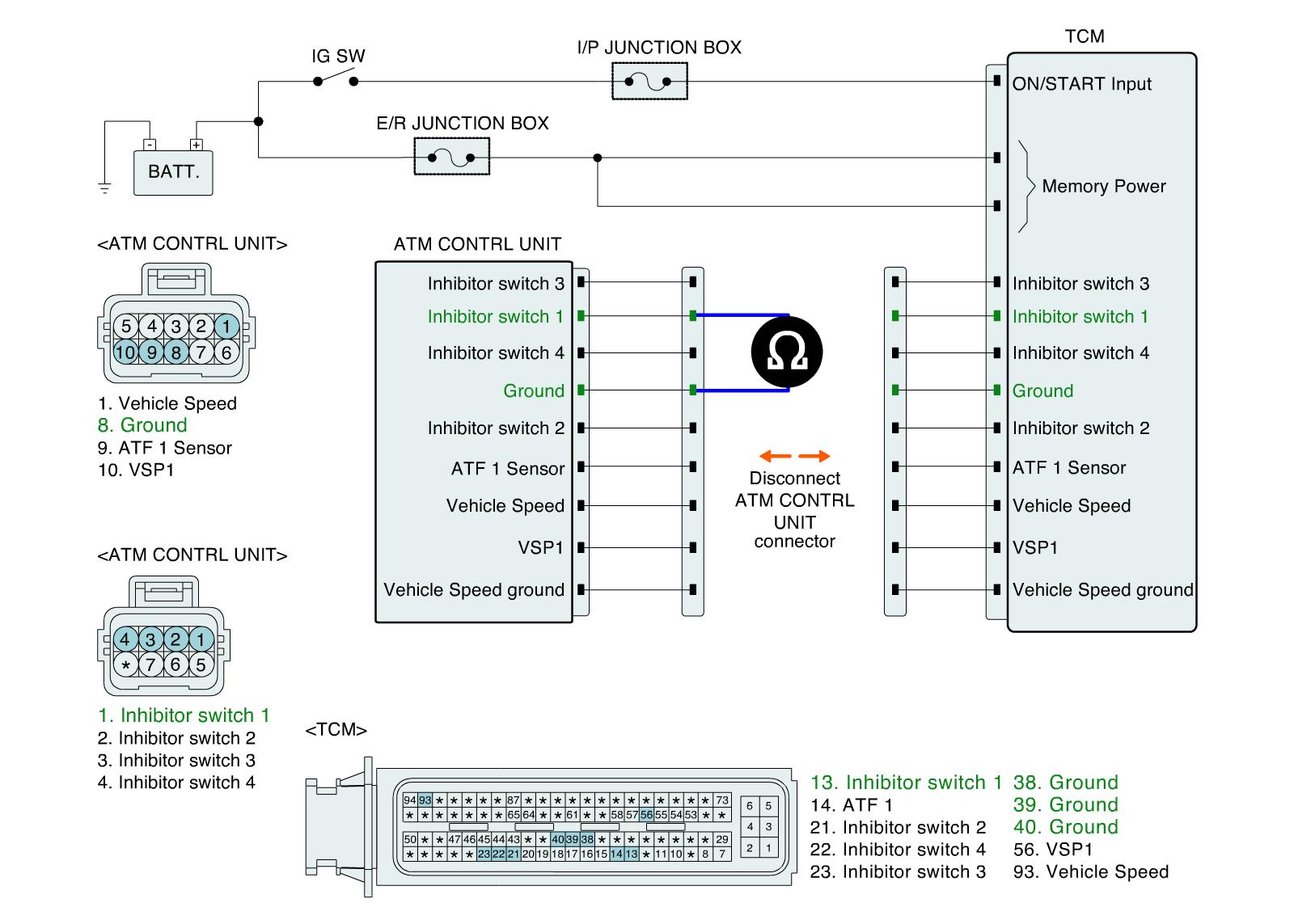

3. Measure resistance between signal and ground terminal of range switch connector (Component Side)

Specification :Refer to below table




Normal Condition(Any other conditions are treated as failure)





X: SWITCH IS ON(GND LEVER)
－: RANGE INDICATER LAMP "OFF" AND MAINTAIN PREVIOUS RANGE

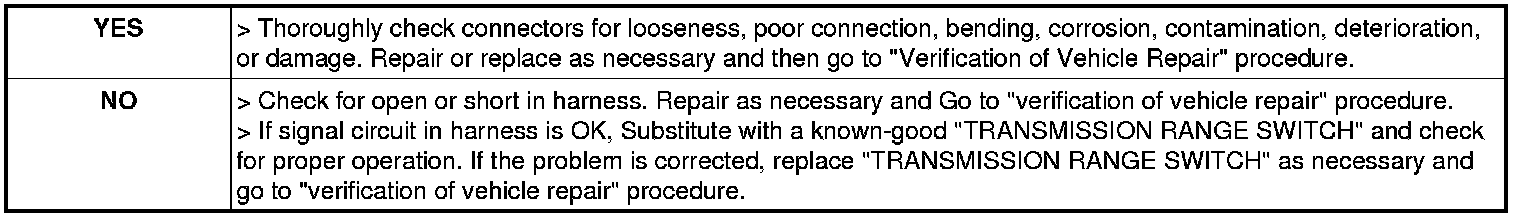

4. Is the measured resistance within specifications ?
