General Information

Engine Control
P06A5 Sensor Reference Voltage - General Information

General Description

The ECM provides a 5volt reference voltage to the Air-con Pressure Transducer(APT) and Power Steering Pressure Sensor(PSPS). The ECM monitors reference voltage deviation from the power supply circuit of the APT and PSPS.

DTC Description

The ECM provides a 5volt reference voltage to the Air-con Pressure Transducer(APT) and PUT. The ECM monitors reference voltage deviation from the power supply circuit of the APT and PUT.

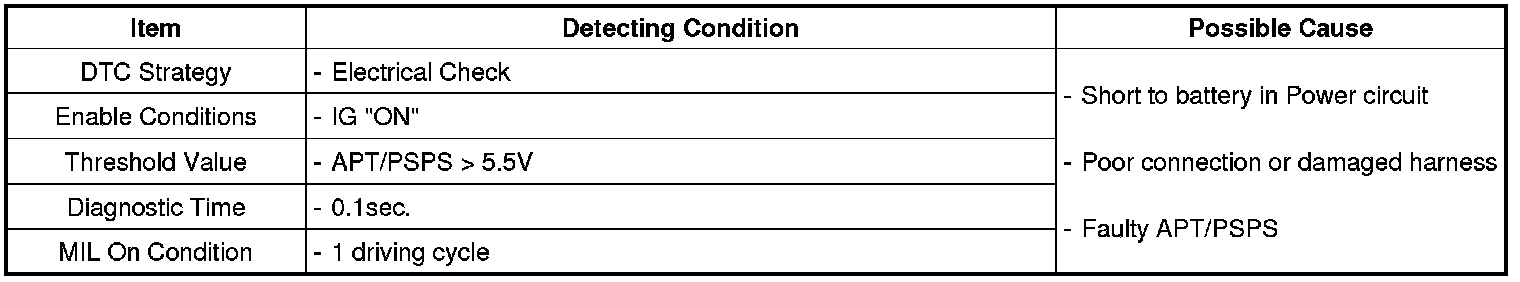

DTC Detecting Condition





( ** APT : Air-Con Pressure Transducer, PSPS : Power Steering Pressure Sensor )

Diagnostic Circuit Diagram
