Component Inspection

Engine Control
P0699 Sensor Reference Voltage - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG key ON.
2. Check sensor data as below.

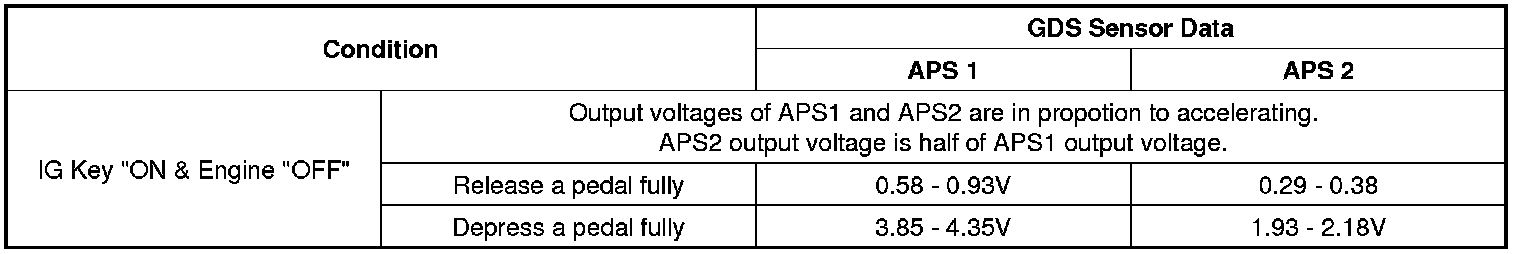

3. Data Analysis

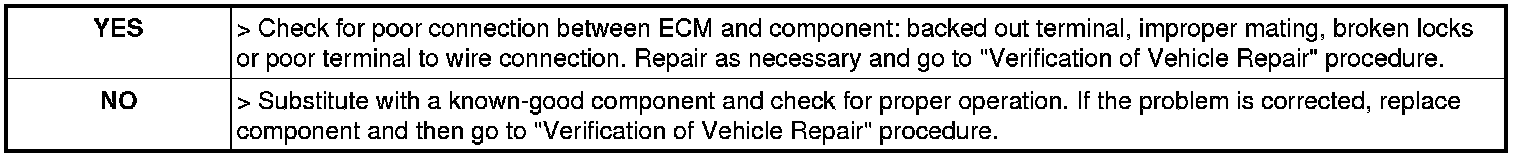

4. Is data in accordance with "Data Anaysis"?
