General Information

Automatic Transaxle
P0641 Sensor Reference Voltage - General Information

Component Location





General Description

The TCM monitors voltage supply to solenoid valve.

DTC Description

The TCM sets this code when suppling voltage to TCM is lower or higher than specification.

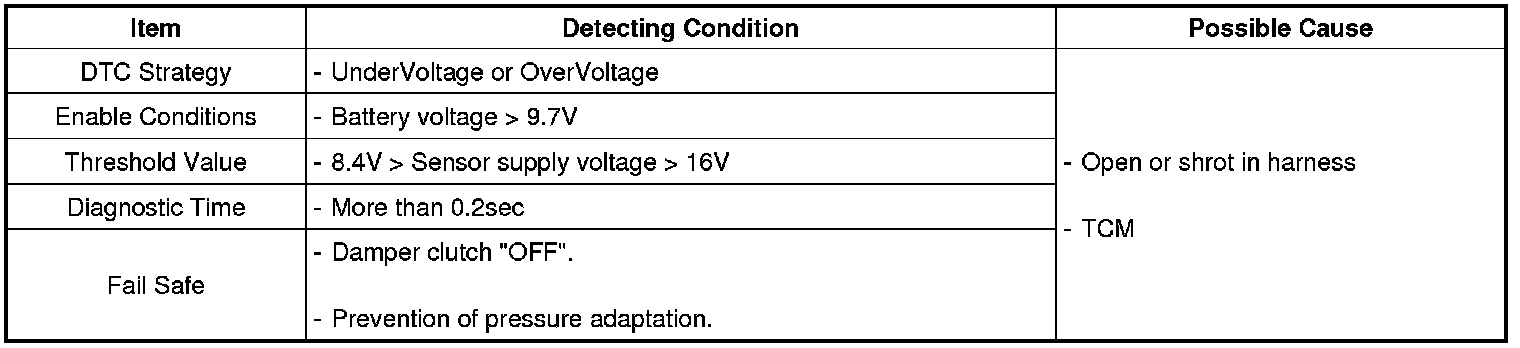

DTC Detectiong Condition





Diagnostic Circuit Diagram
