Component Inspection

Automatic Transaxle
P0601 Internal Control Module Memory Check Sum Error - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF".
2. Connect GDS and erase the DTC P0601 with GDS.
3. Turn IG OFF <-> IG ON 2 or 3 times then, check that DTC P0601 is set again.

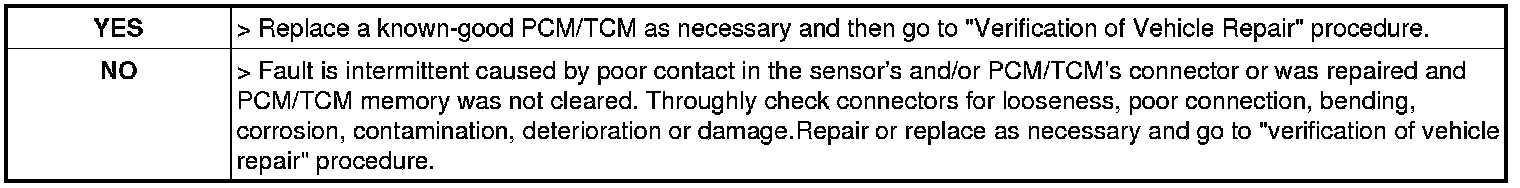

4. Is the DTC P0601set again ?
