Component Inspection

Engine Control
P0246 Turbocharger/Supercharger Wastegate Sol. - Inspection/Repair:_:Component Inspection

Component Inspection

Inspect Resistance
1. Ignition "OFF"

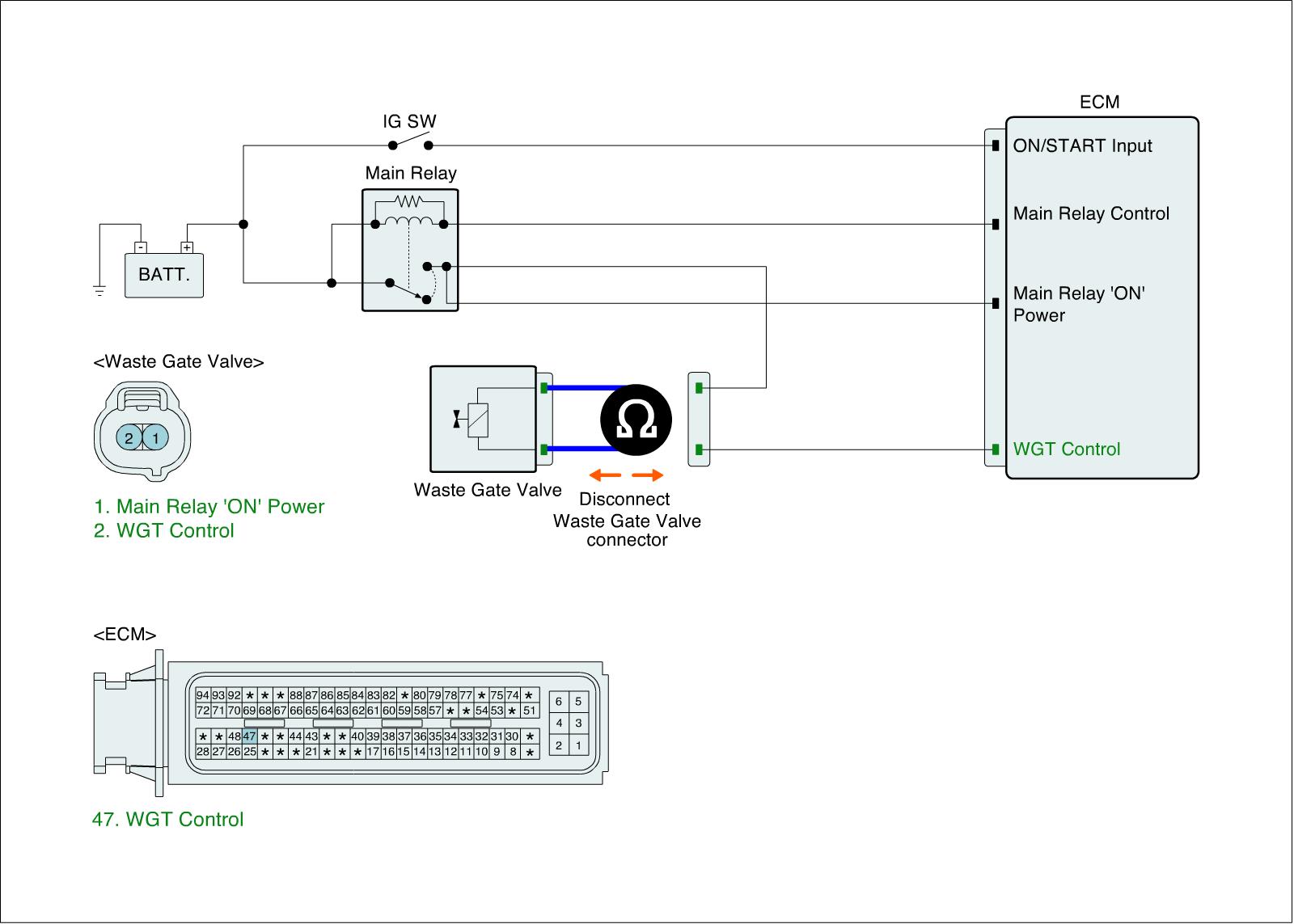

2. Disconnect WGT connector.
3. Measure resistance between control terminal and power terminal of the WGT connector. (Component side)
Specification

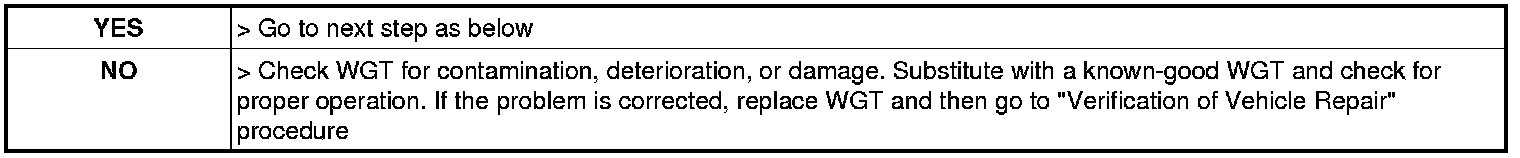

4. Is resistance within the specification?

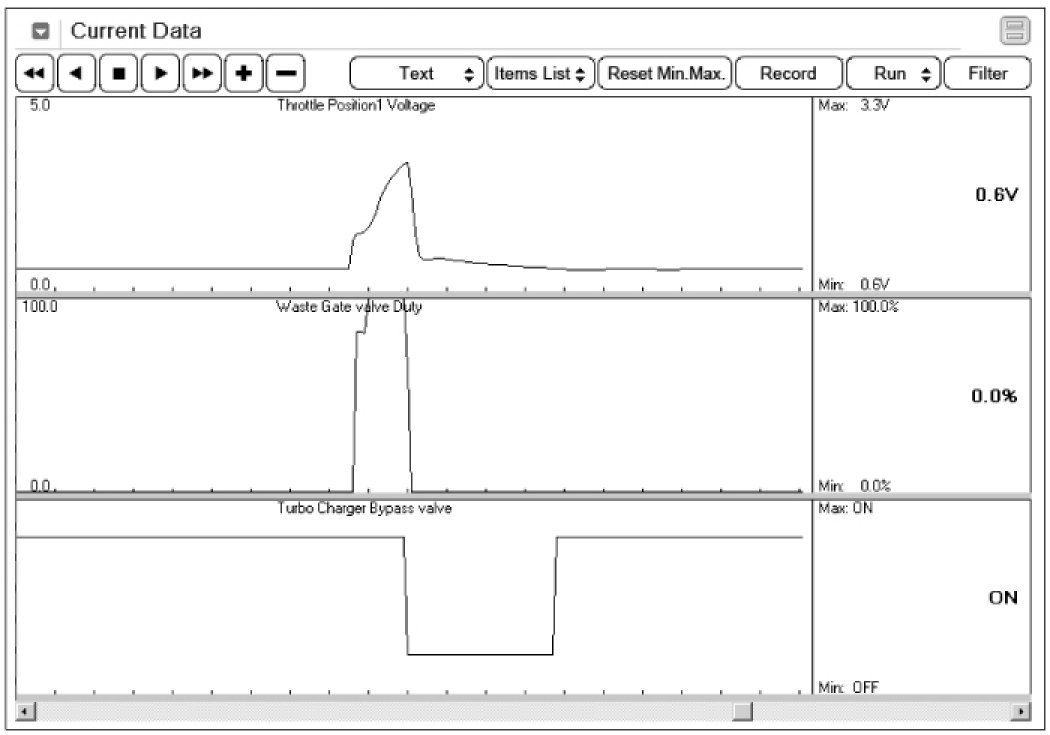

Inspect Signal Waveform
1. Monitor sensor data and signal waveform at accelerating.




2. Is the waveform normal?
