Component Inspection

Engine Control
P0234 Turbocharger/Supercharger Overboost Condition - Inspection/Repair:_:Component Inspection

Component Inspection

Inspect Resistance
1. Ignition "OFF".
2. Disconnect waste gate valve connector and RCV connector.
3. Measure resistance between control terminal and power terminal of the WGT connector. (Component side)
4. Measure resistance between control terminal and power terminal of the RCV connector. (Component side)

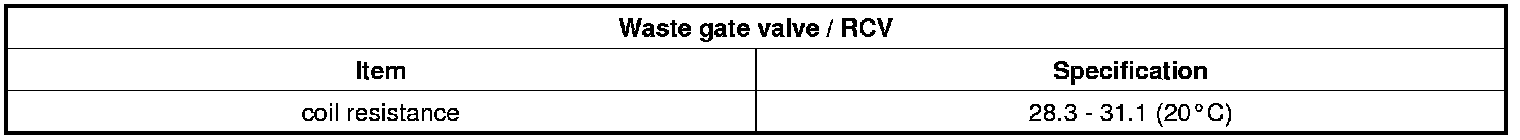

Specification :

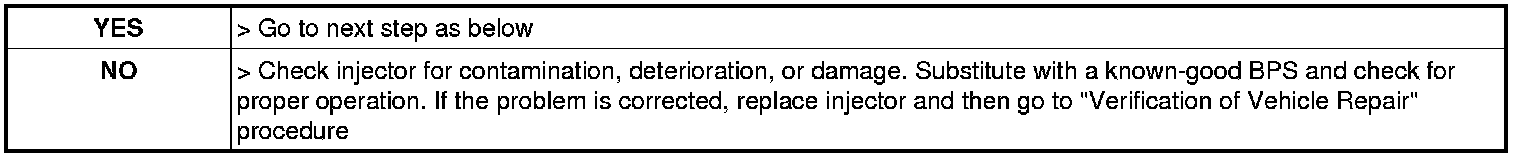

5. Is resistance within the specification?





Inspect Signal Waveform
1. Monitor sensor data and signal waveform at accelerating.




2. Is the waveform normal?
