Component Inspection





Engine Control
P0113 Intake Air Temperature Sensor 1 Circuit High Input - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF"

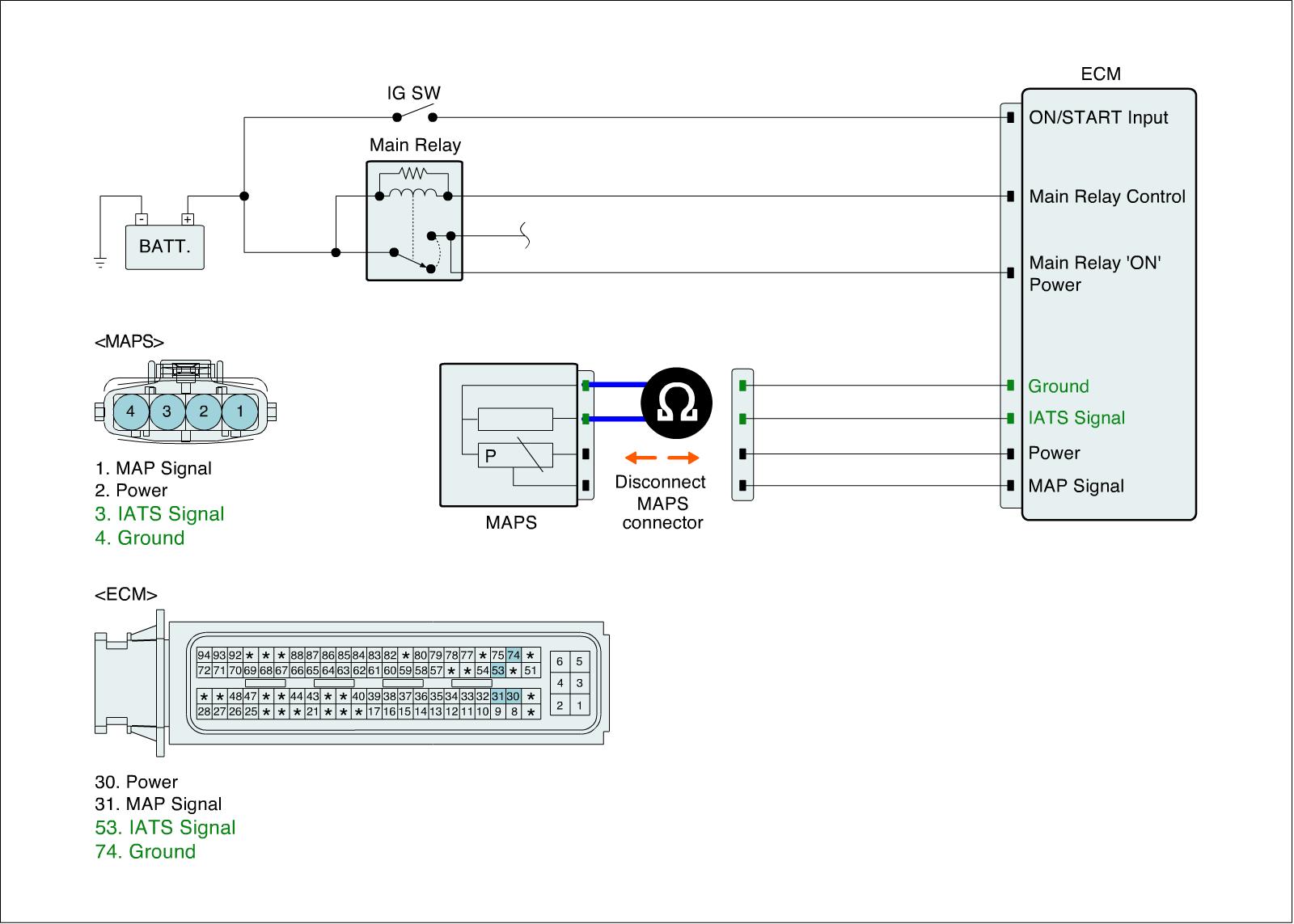

2. Disconnect IATS connector
3. Measure the resistance between signal terminal and ground terminal of the sensor connector(Component side).

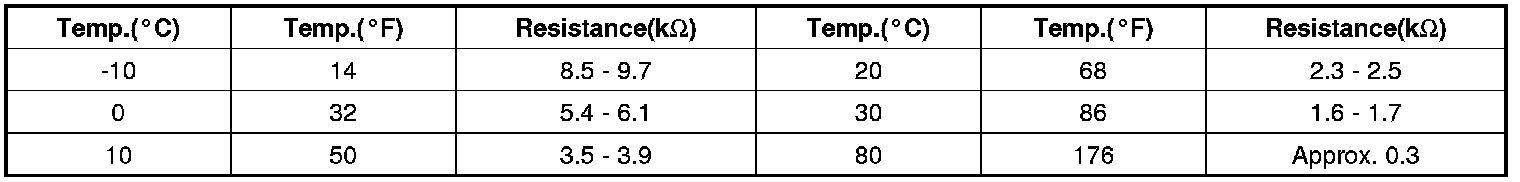

Specification:

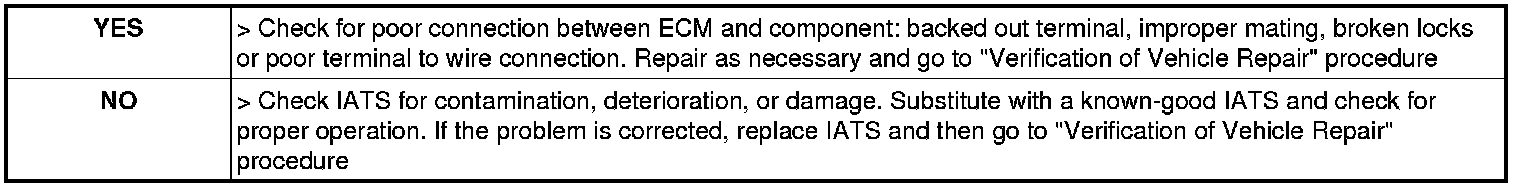

4. Is resistance within the specification?
