C2126 Vacuum Pump Relay Drive Pin Open/Short - General Information

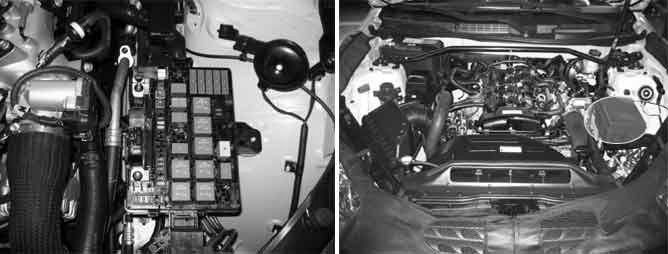

Component Location





General Description

The Vacuum Pump System is set up in a vehicle in order to make the vacuum enough when a drvier presses the brake pedal on the high ground. To operate this system, the vacuum pump is installed on a vehicle.
If the vacuum is not sufficient to press the brake pedal, the HECU senses it through the vacuum switch, which is installed on booster. And then the HECU supplies the power to the vacuum pump by grounding the circuit of the vacuum pump relay. When the vacuum pump is supplied with electric power, it makes the vacuum and supplements it to the booster.

DTC Description

The HECU monitors the vacuum pump relay for a normal operation and if there is a open or short circuit in the relay, this DTC is set.

DTC Detecting Condition

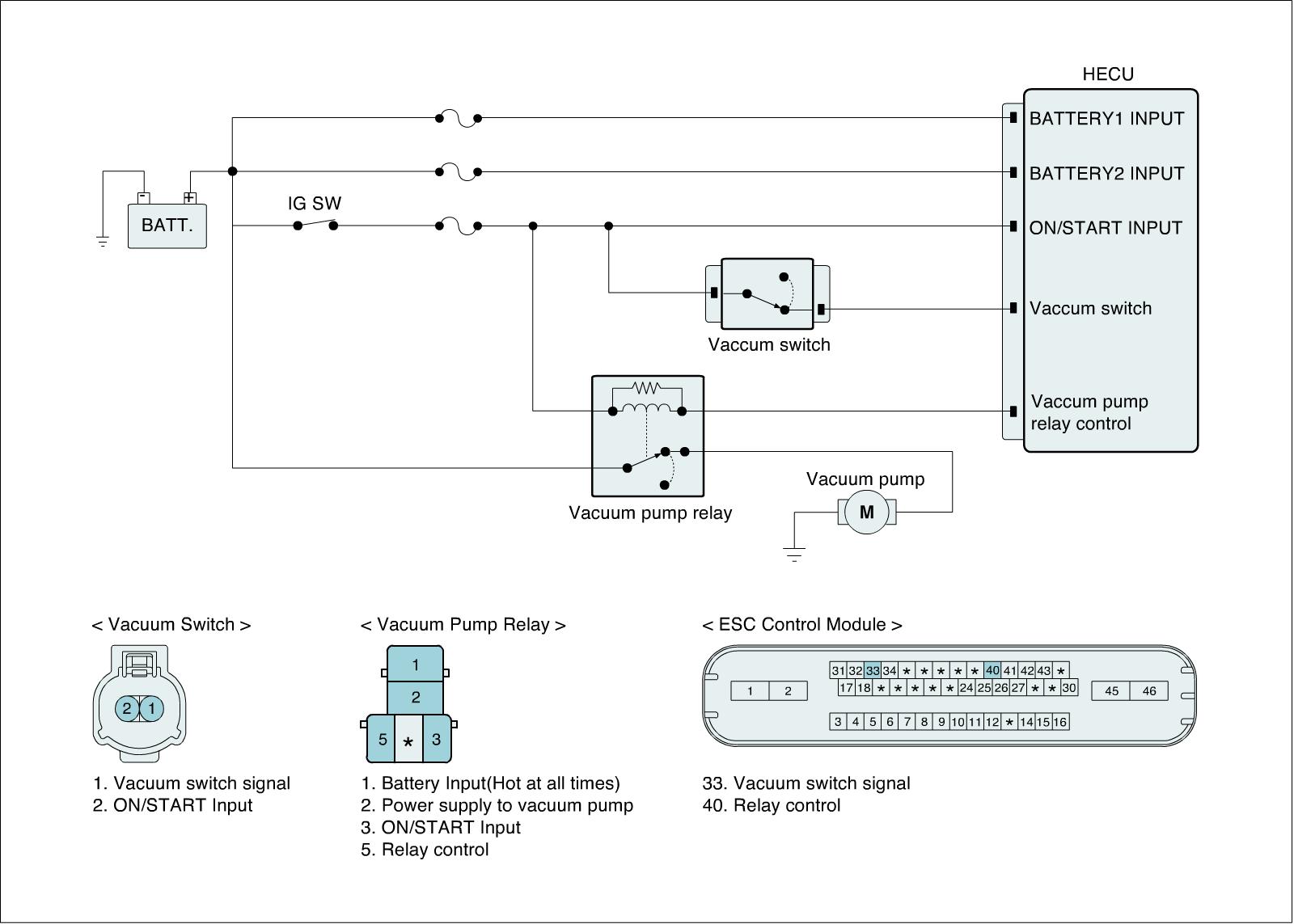

Diagnostic Circuit Diagram
