Component Inspection

Automatic Headlamp Leveling System
C1606 ECU Software Error - Inspection/Repair:_:Component Inspection

Component Inspection

Check ECU(AHLS)
1. Connect scantool to Data Link Connector(DLC).
2. Engine "ON" and Head lamp"ON".
3. Erase the DTC with scantool.

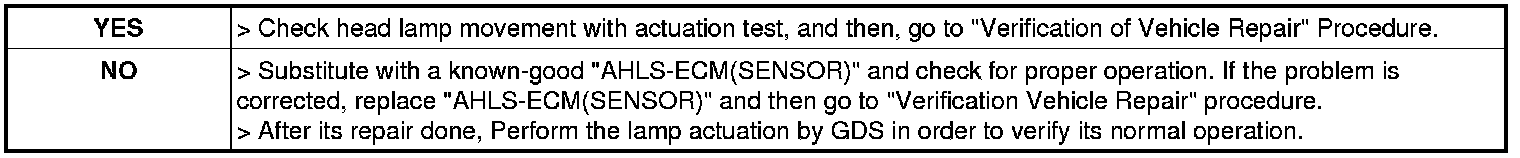

4. Is it possible to erase the DTC with Scantool ?






CAUTION:
Perform Vehicle Selection and Level Initialization with scantool if AHLS ECM is repalce. (Auto Levelling Sensor)
