Scantool Diagnostics

Automatic Headlamp Leveling System
C1260 Steering Angle Sensor-Signal - Scantool Diagnostics

Scantool Diagnostics

1. Connect scantool with Diagnostic Connector.
2. Engine "ON" and Turn on the auto head light system.

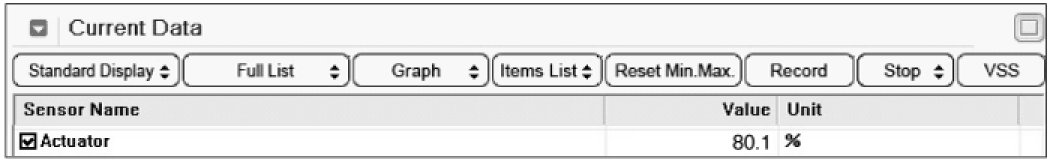

3. Check "Actuator" parameter on scantool. (It should be checked while the vehicle is unloaded condition)

Specification :80%±2%

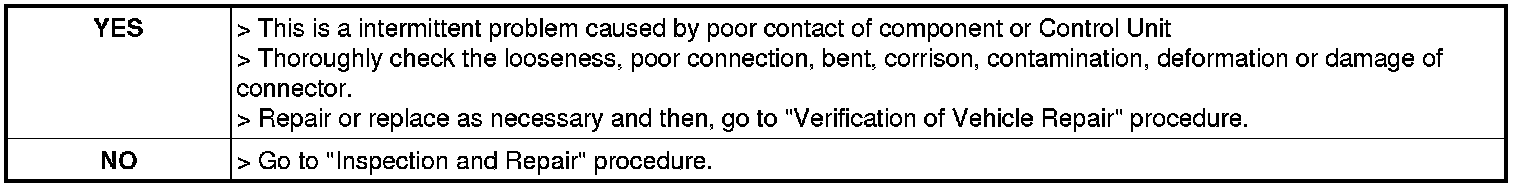

4. Is parameter displayed within the Specification?
