B1989 ESCL Ground Short Circuit To Battery - Scantool Diagnostics

Scantool Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .




5. Is the same DTC occurred again?





Service Data Analysis
1. IG "OFF" and connect GDS.

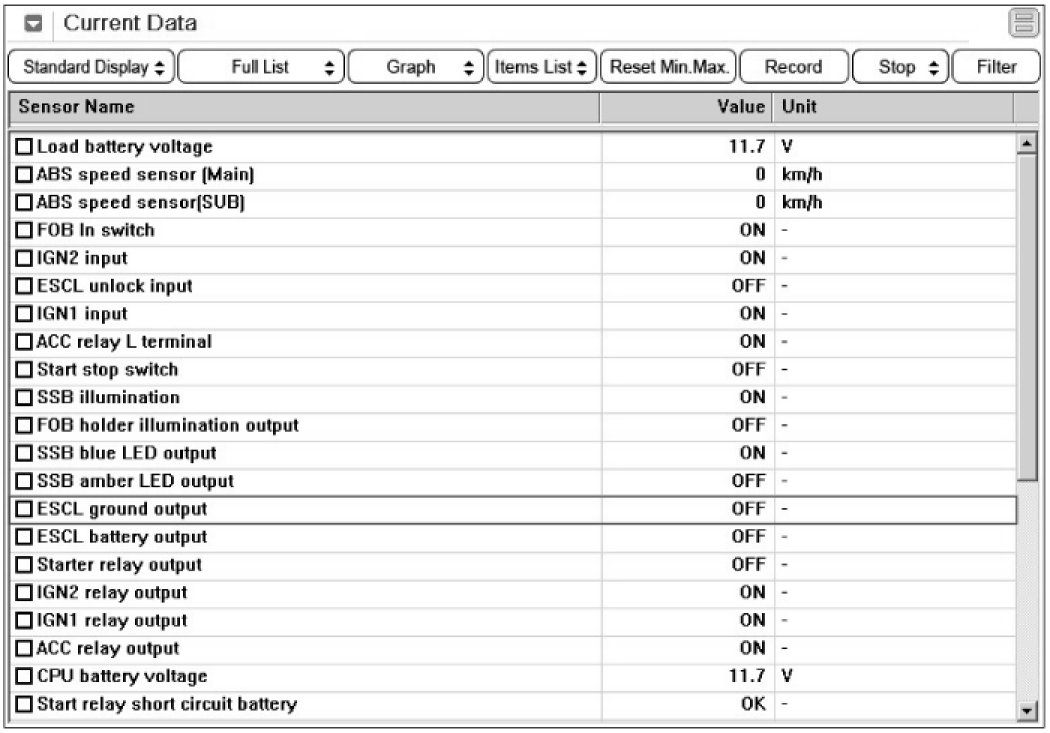

2. IG "ON" and select "Current Data" menu.
3. Check the service data of ESCL GND.

Specification :OFF

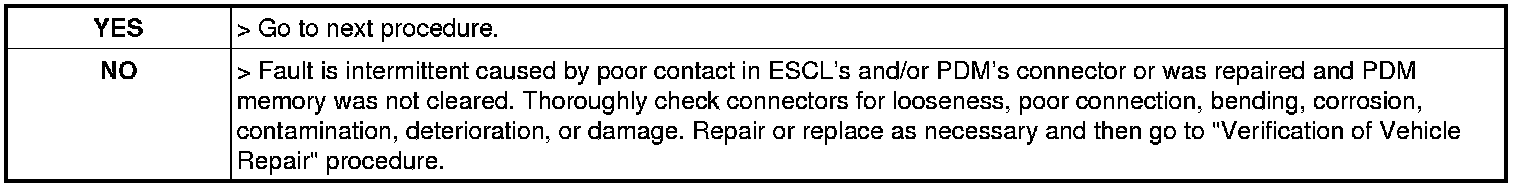

4. Is the service data within specifications?
