Component Inspection

Power Distribution Module
B1603 CAN Bus Off - Inspection/Repair:_:Component Inspection

Component Inspection

Check internal errors of CAN communication in PDM.
1. Replace with a known-good PDM after removing installed PDM
2. Connect GDS.
3. IG "ON" and engine "OFF".
4. Select "DTC Analysis" mode.

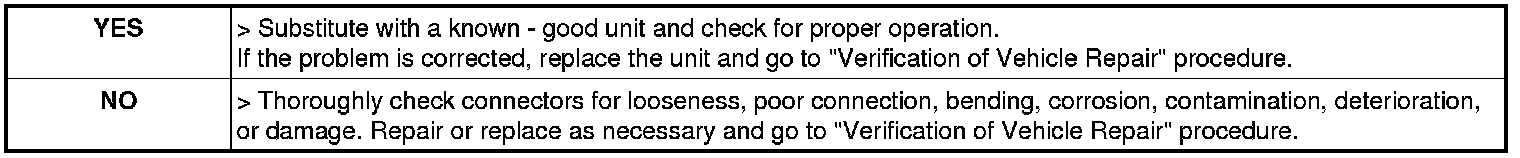

5. Is the code erased?
