General Information

Airbag(Event #2)
B1495 BTS(Belt-Tension Sensor) Defect - General Information

Component Location





General Description

Sensing seat belt tension, belt tension sensor sends signals to PODS ECU.
Sensing the intensity of pressure from pressure sensor and tension from belt tensioner, PODS ECU decide a passenger as an adult or a child.

DTC Description

DTC B1495 is recorded when a malfunction is detected in the Belt-Tension Sensor.

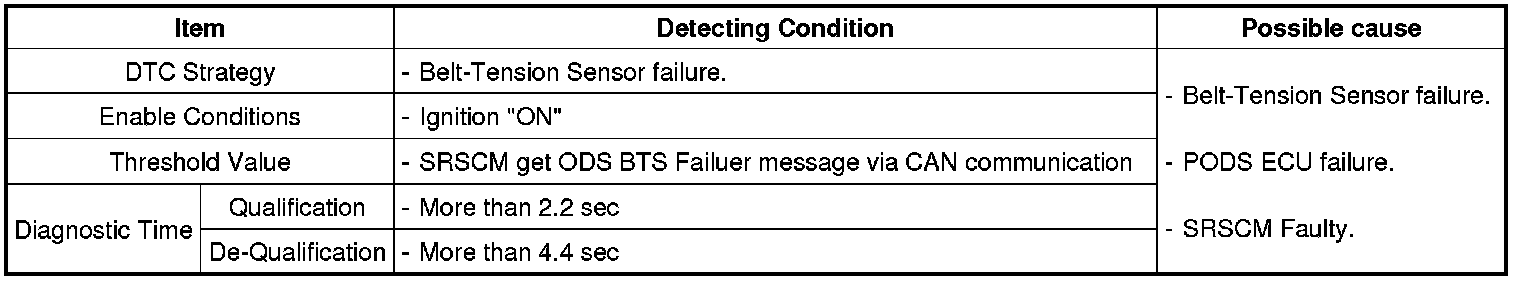

DTC Detecting Condition





Diagnostic Circuit Diagram
