W/Harness Inspection

Airbag(Event #2)
B1341 Remote Crash Sensors Cross Coupling - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check shorting connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Main harness Circuit Inspection

1. Measure resistance of FIS,SIS and P-SIS
(1) Ignition "OFF".
(2) Disconnect (-) cable from battery and wait for more than 1 minute.
(3) Disconnect FIS,SIS and P-SIS connector and then disconnect SRSCM connector.
(4) Measure resistance among circuits of FIS,SIS and P-SIS.

Specfication :Infinity Ohms

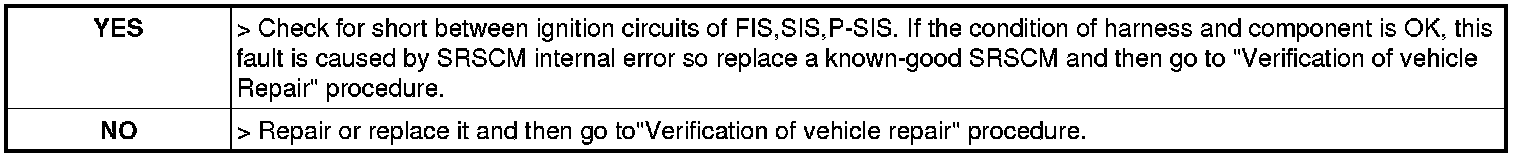

(5) Is the measured resistance within specifications?
