General Information

Airbag(Event #2)
B1341 Remote Crash Sensors Cross Coupling - General Information

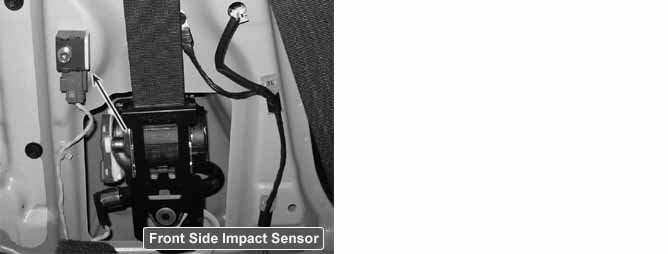

Component Location










General Description

The airbag system checks a short between sensors in order to operate an impact sensor. Among the impact sensors, such as Front Impact Sensor(FIS), Pressure-Side Impact Sensor(P-SIS), and Side Impact Sensor(SIS), if there is a short among them, DTC code would be set.

DTC Description

If there is a short between each impact sensor's circuit, this DTC would be set. For example, if there is a short between front impact sensor's circuit and side impact sensor's circuit, this DTC would be set and recorde in the ACU. At this time, the ACU makes warning lamp turn on to let a driver know.

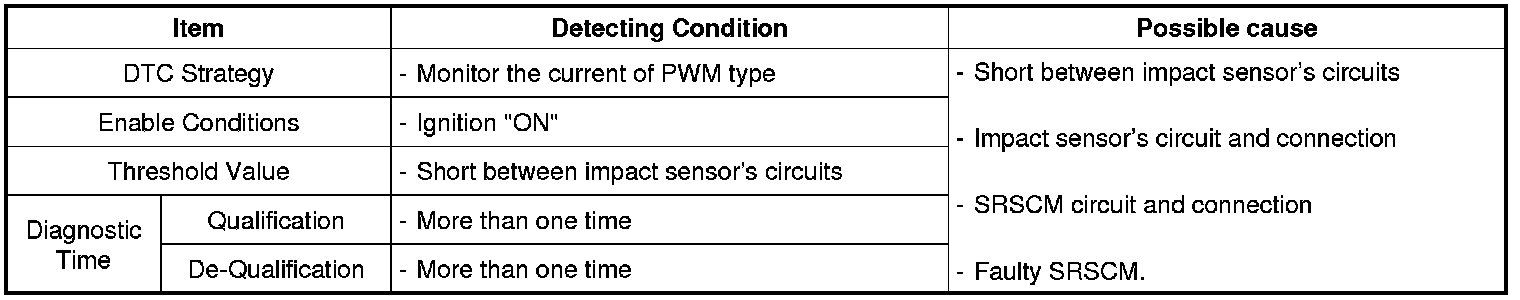

DTC Detecting Condition

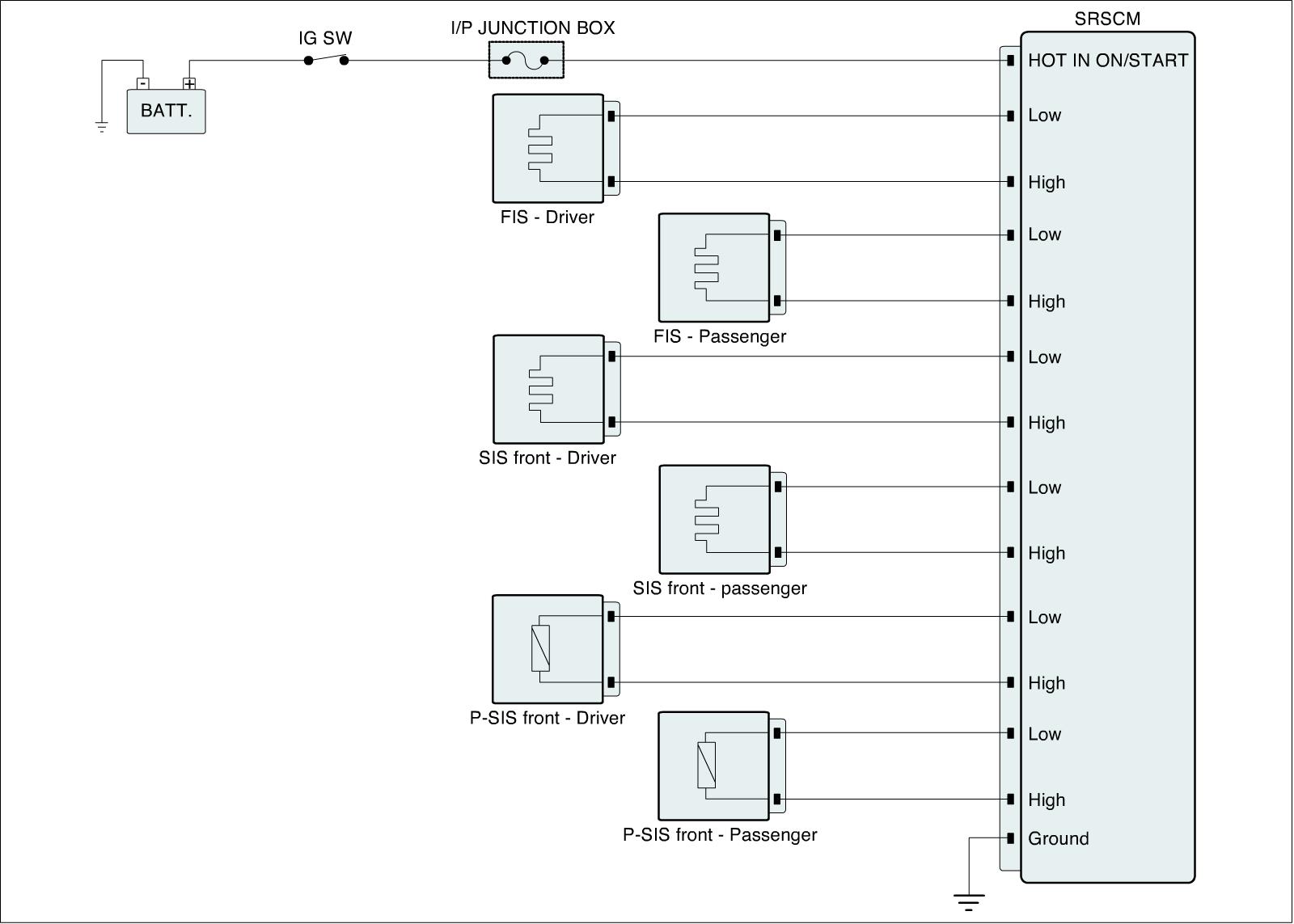

Diagnostic Circuit Diagram
