W/Harness Inspection

Airbag(Event #2)
B1332 FIS(Front Impact Sensor)-Passenger Short to Battery - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Main harness Circuit Inspection

1. Ignition "OFF".
2. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
3. Disconnect PFIS connector and SRSCM main harness connector.
4. Connect the battery (-) terminal cable to the battery and Ignition "ON" & Engine "OFF".

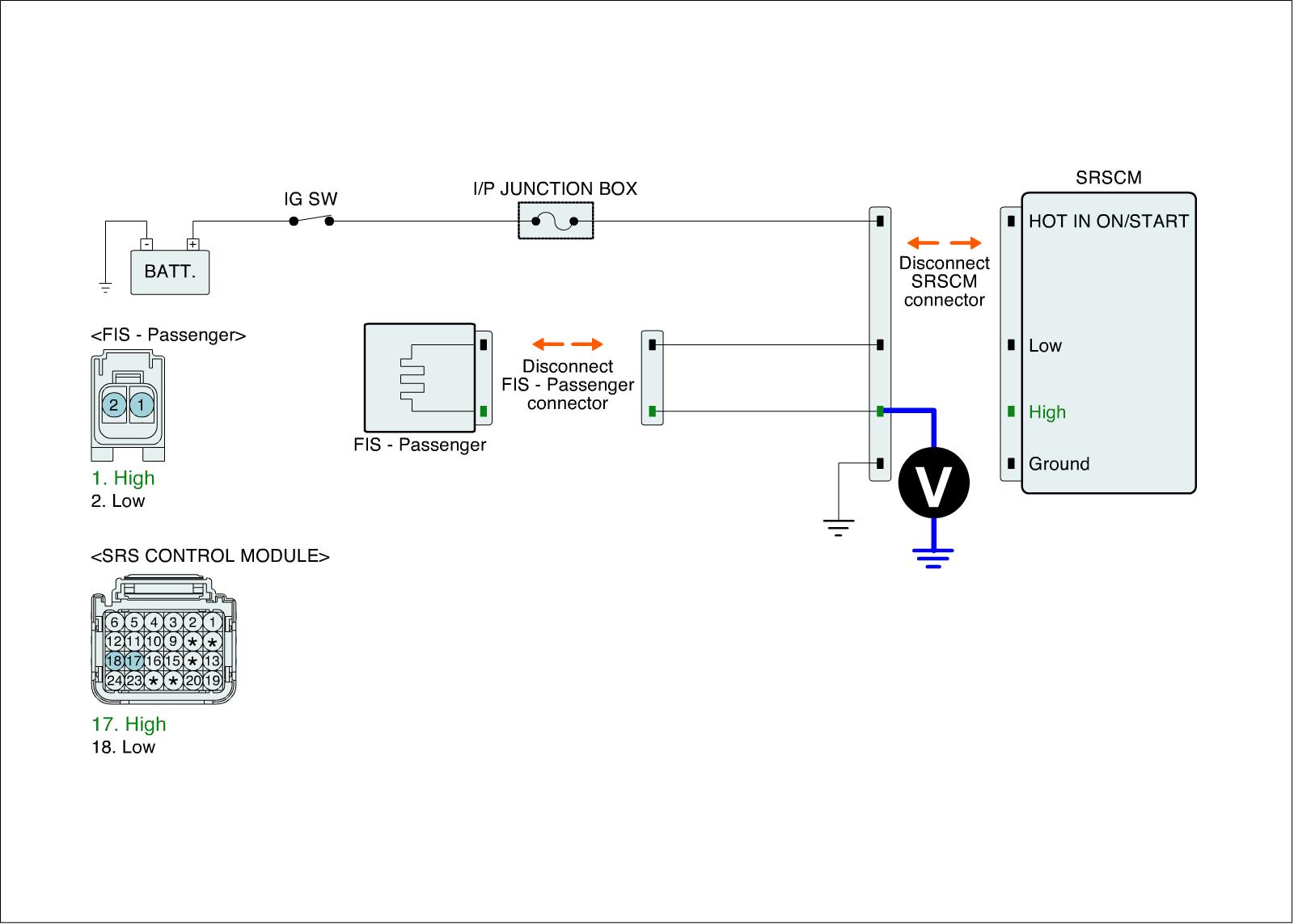

5. Measure voltage between terminal "FIS-Passenger ( + )" or "FIS-Passenger ( - )" of the PFIS harness connector and chassis ground.

Specification :0V

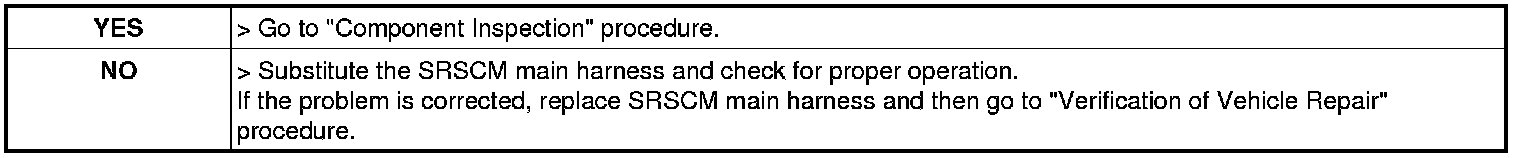

6. Is the measured Voltage within specifications?
