Seat Temperature Switch: Testing and Inspection

Inspection

Front Seat Warmer Switch
1. Disconnect the negative (-) battery terminal.

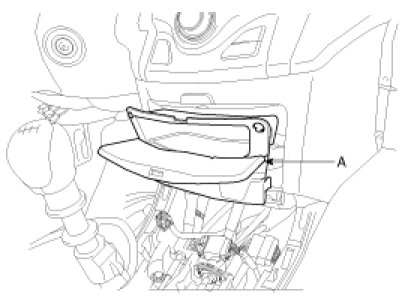

2. Remove the center fascia lower tray(A) after loosening the mounting clips.

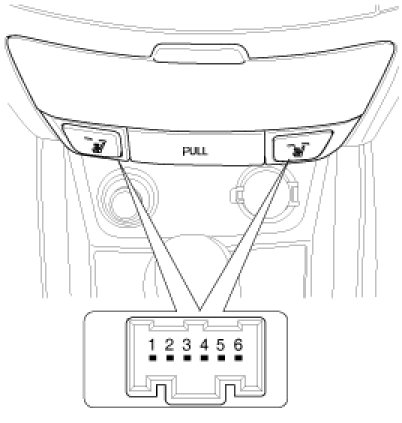

3. Disconnect the seat warmer switch connector.

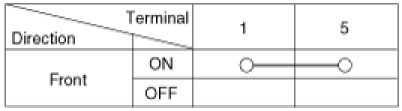

4. Check that continuity exists between the terminals.
