Parking Assist Distance Sensor: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the rear bumper.

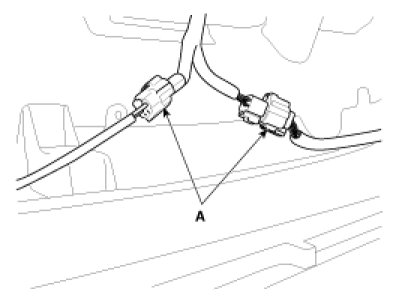

3. Disconnect the connectors (A) from the rear bumper.

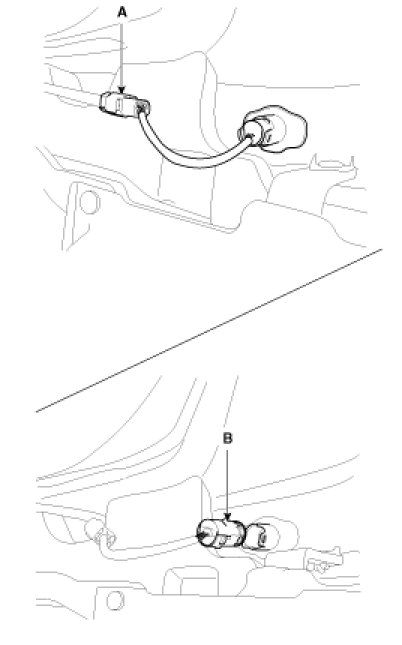

4. Disconnect the sensor connector (A) at the inside of the rear bumper, and then remove the sensor (B) from the housing.




5. Installation is the reverse of removal procedure.
