Diagram Set SD958 (DRL (Daytime Running Light))

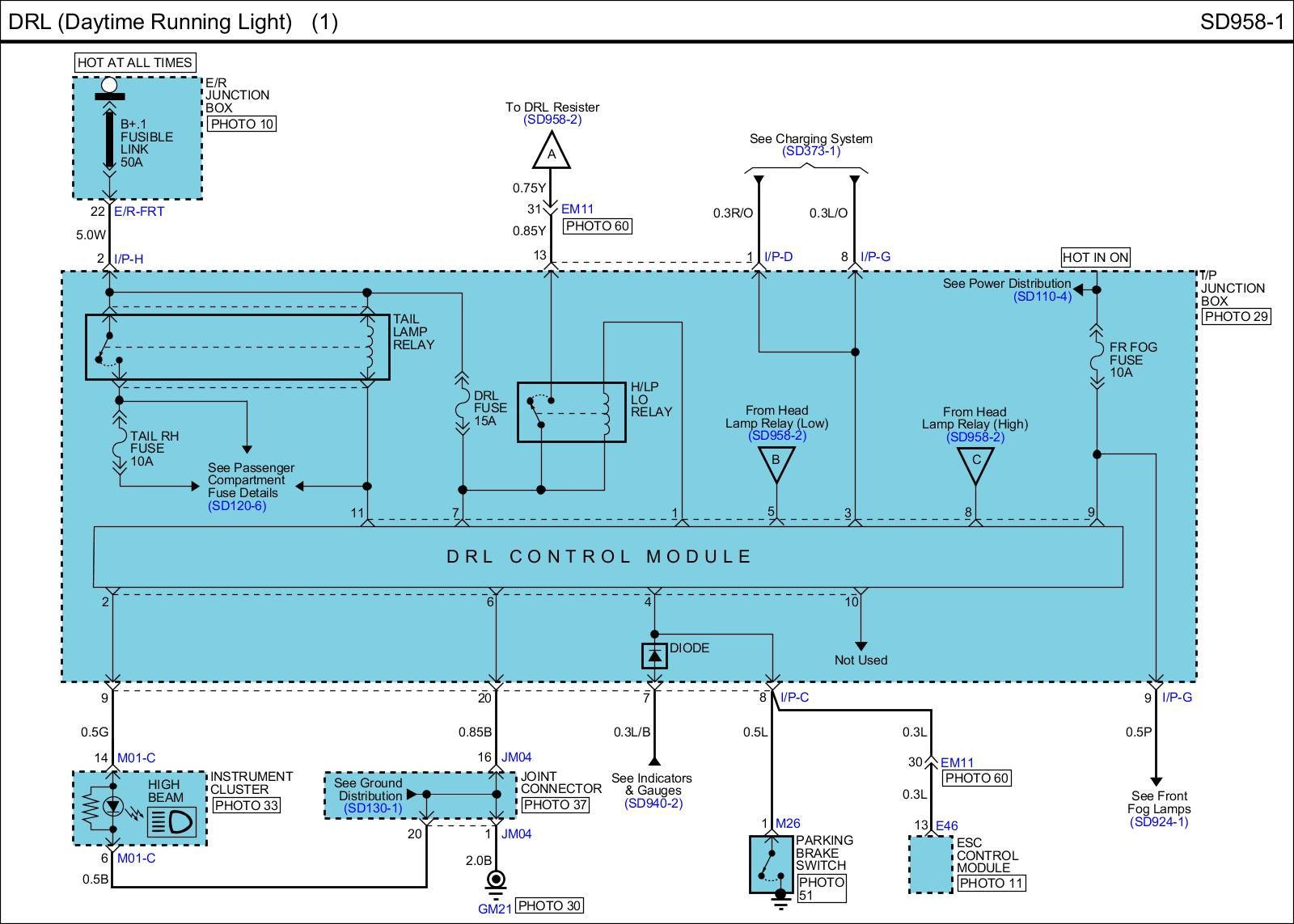

SD958-1 DRL (Daytime Running Light) (1):




SD958-1 DRL (Daytime Running Light) (2):
