ABS (Anti-Lock Brake System)





ABS Circuit Diagram(1)





ABS Circuit Diagram(2)

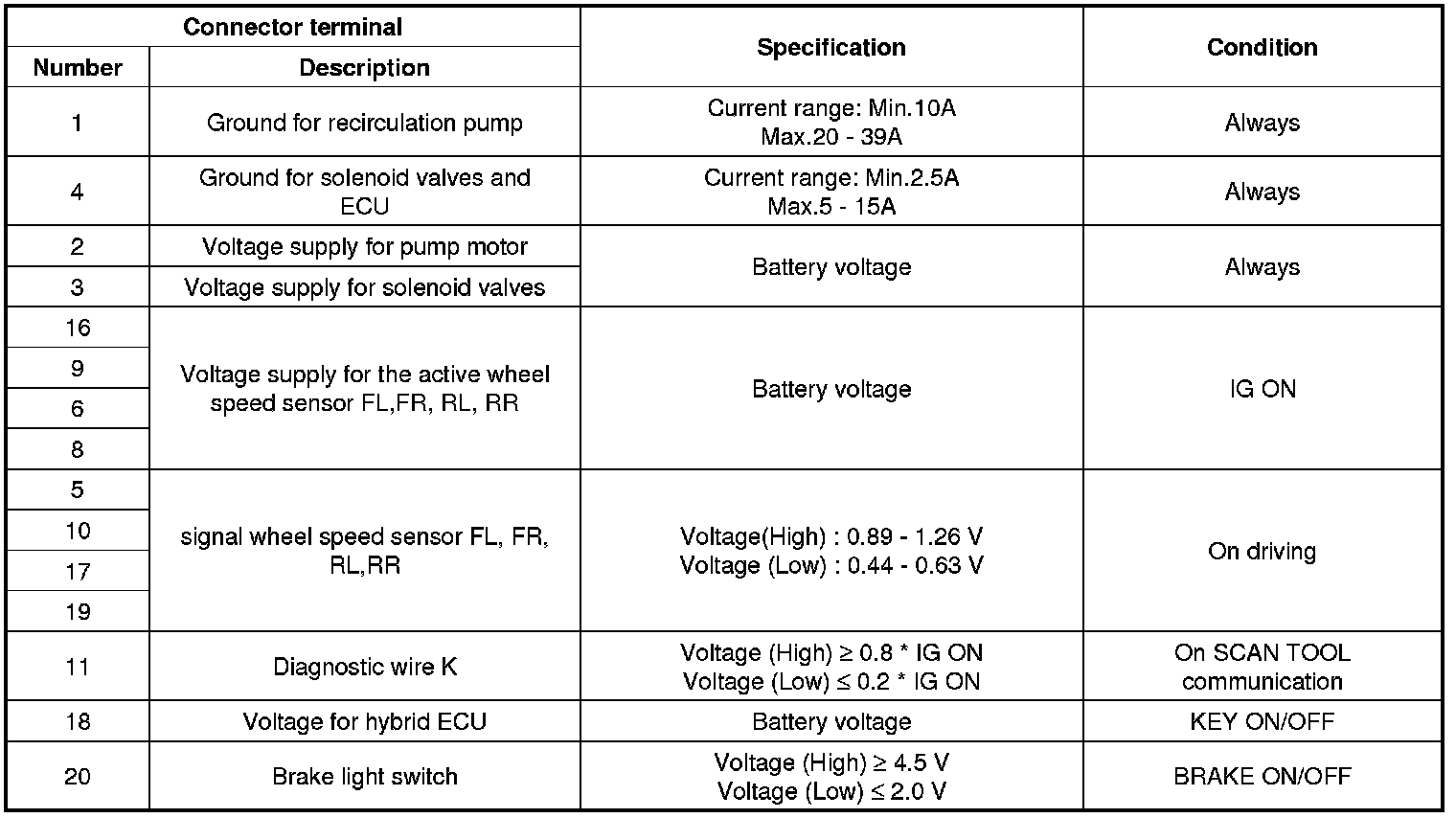

ECU Connector Input/Output(ABS)

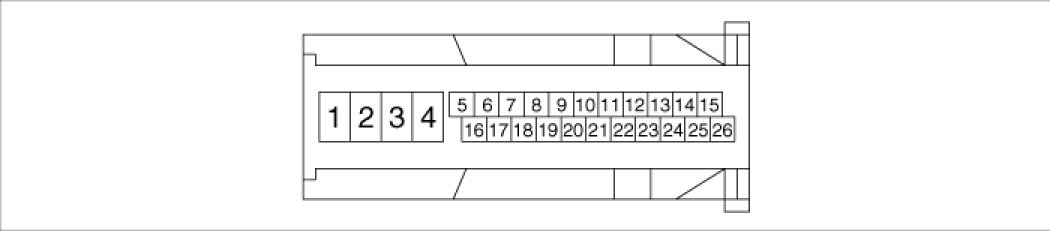

ABS HECU Connector





Sensor Output on Scan Tool(ABS)
