Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Clutch Switch >> Diagrams >> Ignition Lock Switch (M/T)

Ignition Lock Switch (M/T)

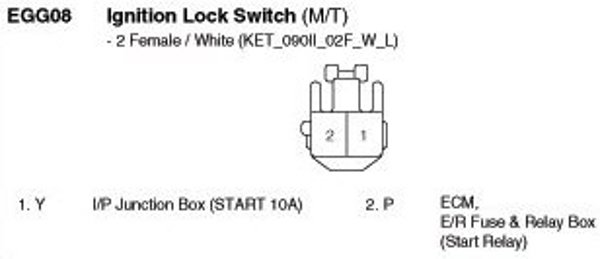

EGG08 Ignition Lock Switch (M/T):
