Restraint (Depowered) (Autoliv(Depowered))
Restraint (Depowered) (Autoliv(Depowered))

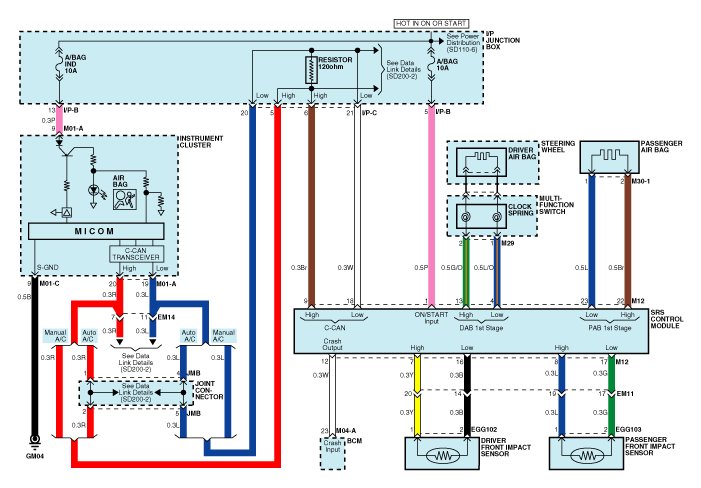

Circuit Diagram (1)

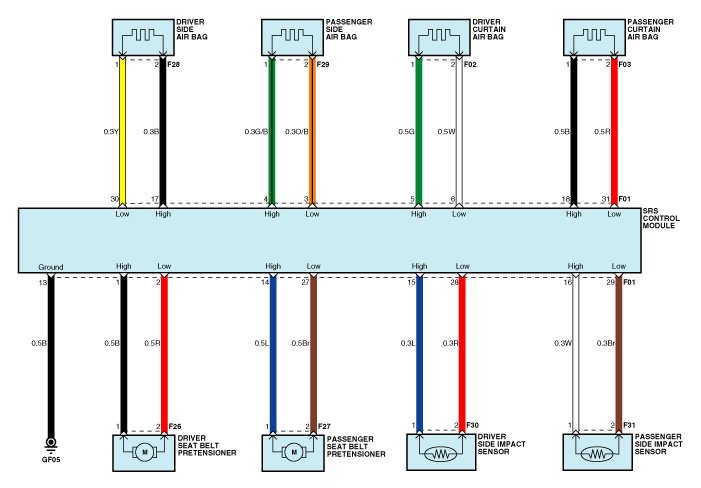

Circuit Diagram (2)

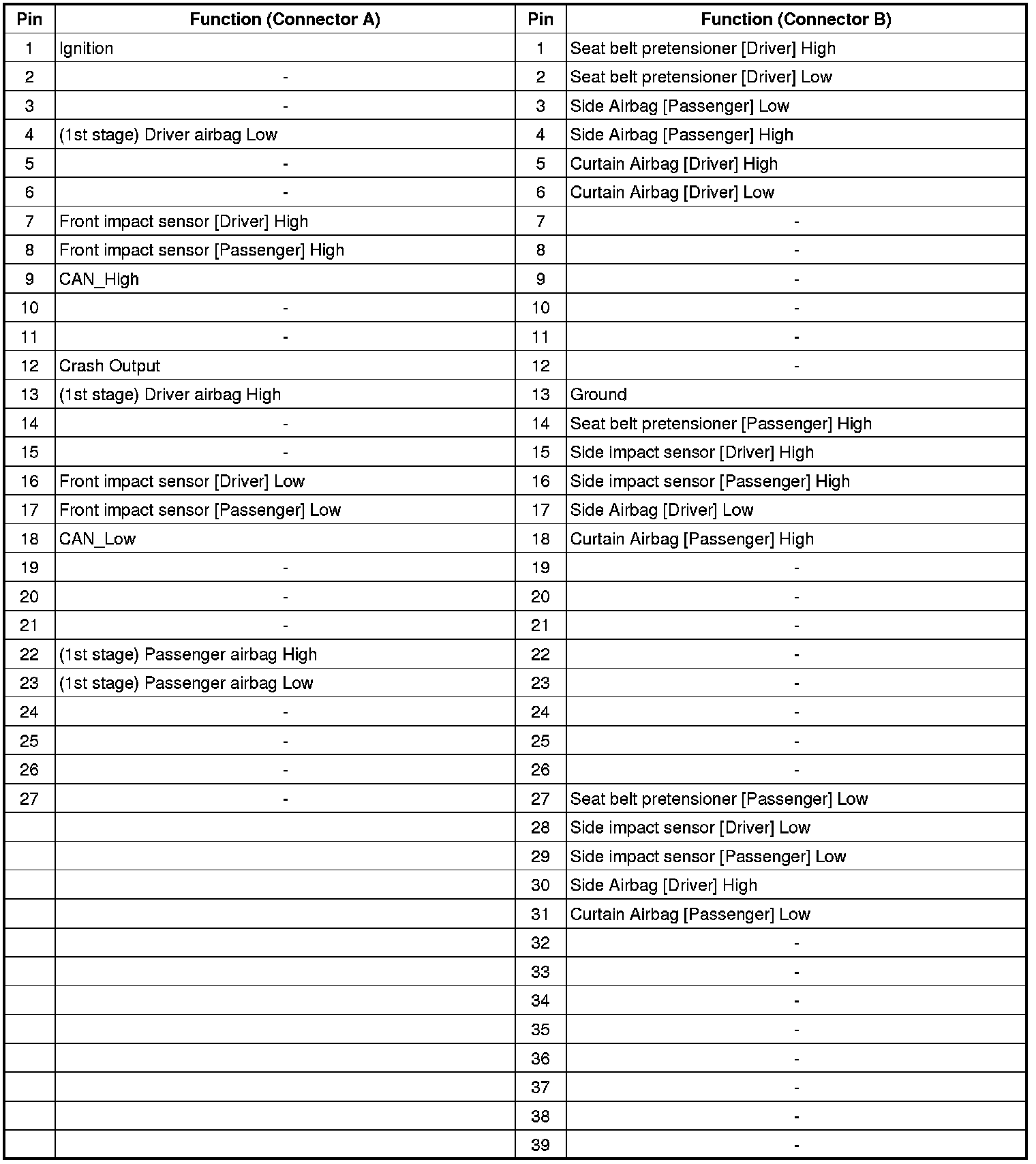

SRSCM Connector terminal
