Restraint (Advanced) (Weight Classification)

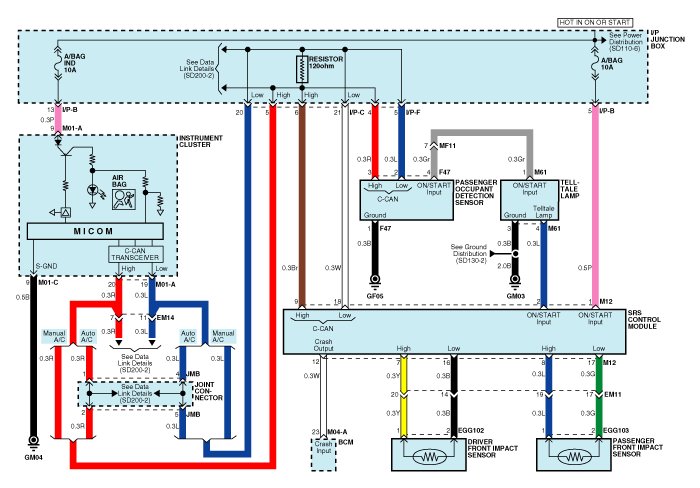

Circuit Diagram (1)

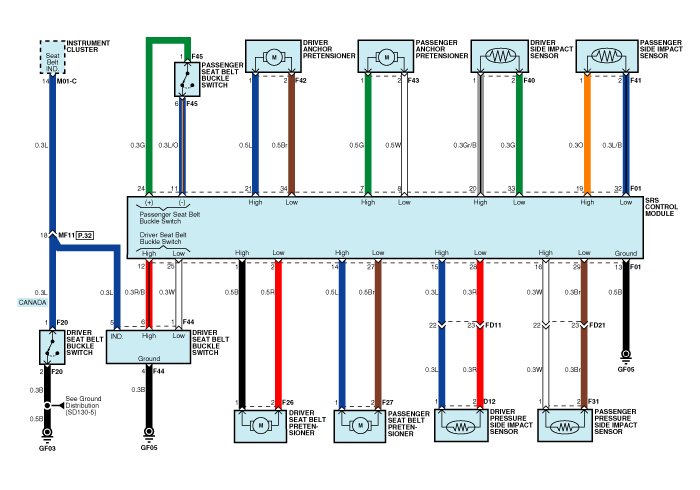

Circuit Diagram (2)

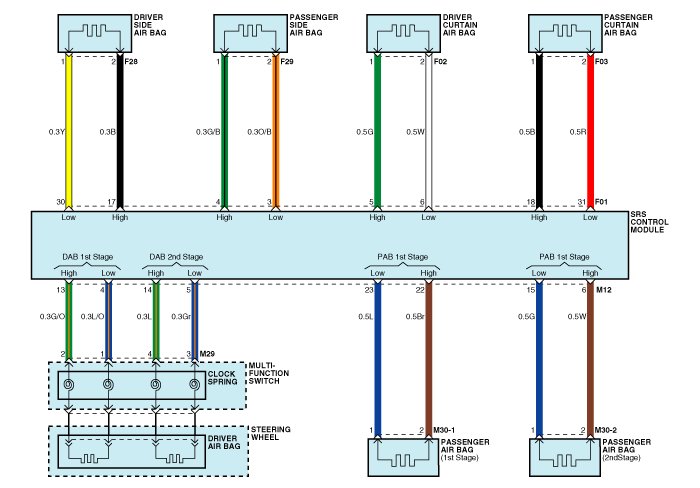

Circuit Diagram (2)

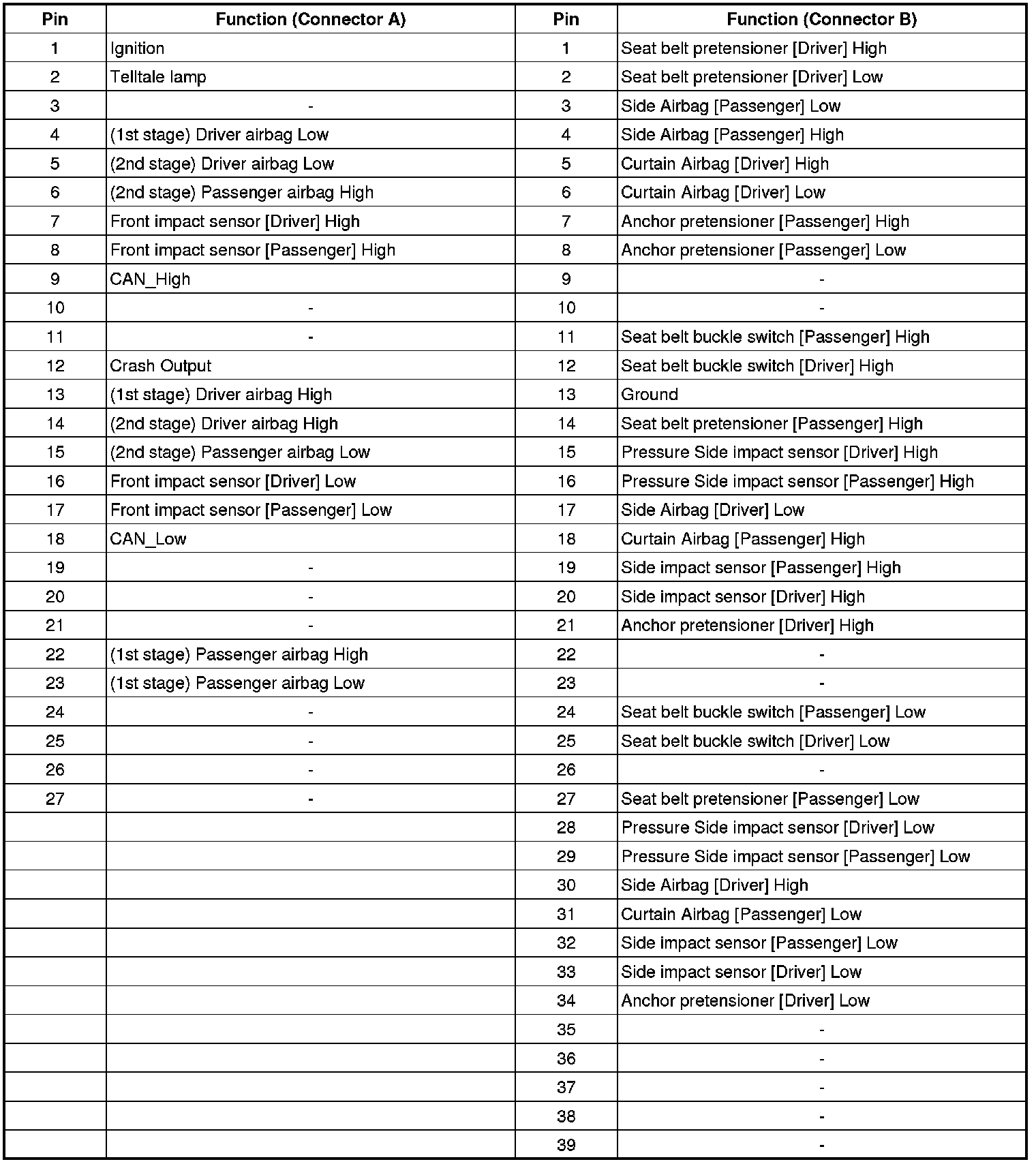

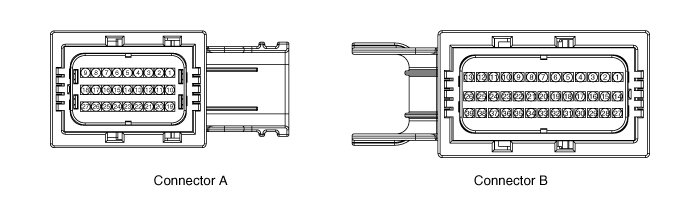

SRSCM Connector terminal
