Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Relays and Modules - HVAC >> System Relay >> Locations >> Connector Locations >> A/Con Relay (Manual A/C)

A/Con Relay (Manual A/C)

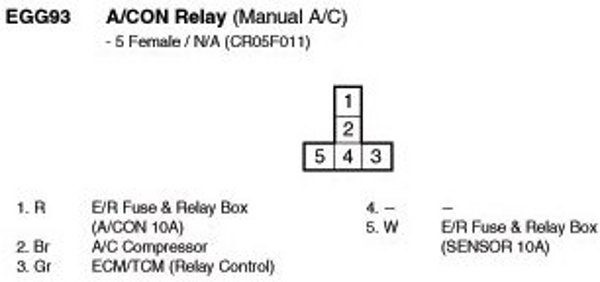

EGG93 A/CON Relay (Manual A/C):
