Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> R01 Overhead Console Lamp (With Sunglass Cap)

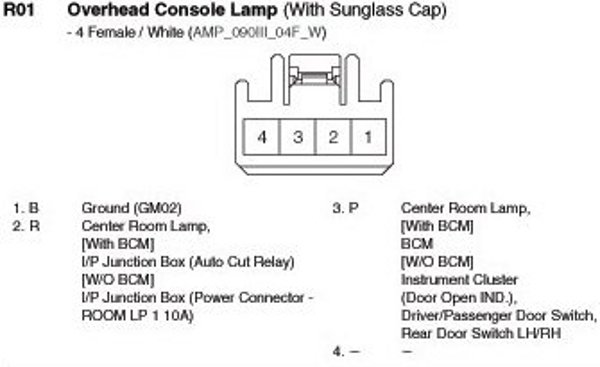

R01 Overhead Console Lamp (With Sunglass Cap)

R01 Overhead Console Lamp (With Sunglass Cap):
