Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M62 DRL Control Module (Canada)

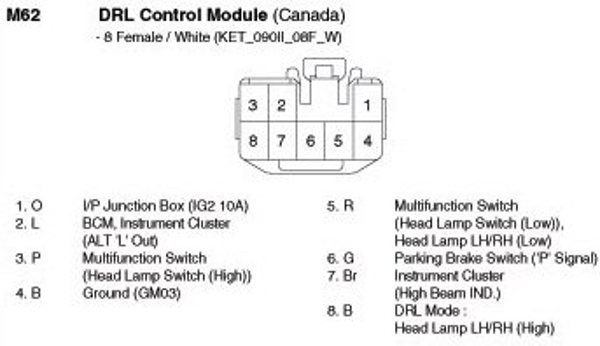

M62 DRL Control Module (Canada)

M62 DRL Control Module (Canada):
