FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M28 Rear Defogger Switch (Canada)

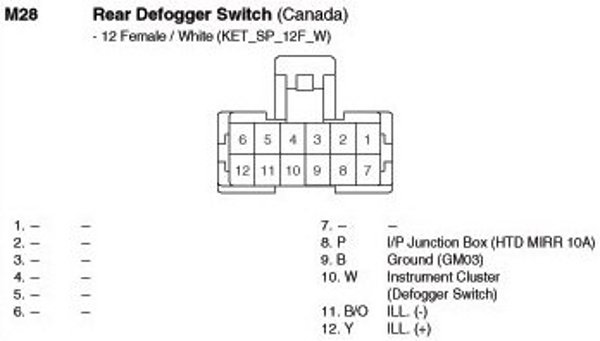

M28 Rear Defogger Switch (Canada)

M28 Rear Defogger Switch (Canada):
