Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> F20 Driver Seat Belt Switch (Canada)

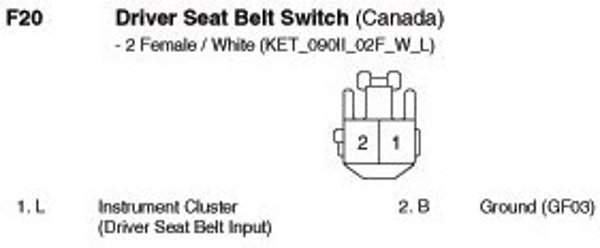

F20 Driver Seat Belt Switch (Canada)

F20 Driver Seat Belt Switch (Canada):
