Keyless Entry: Testing and Inspection

Inspection

Front Door Lock Actuator
1. Remove the front door trim.

2. Remove the front door latch.
.
3. Disconnect the connectors from the actuator.




4. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





Rear Door Lock Actuator
1. Remove the rear door trim.

2. Remove the rear door latch.

3. Disconnect the connectors from the actuator.




4. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





Front Door Lock Switch
1. Remove the front door trim.

2. Remove the front door latch.
.
3. Disconnect the connectors from the actuator.




4. Check for continuity between the terminals in each switch position when inserting the key into the door according to the table.





Rear Door Lock Switch
1. Remove the rear door trim.

2. Remove the rear door latch.

3. Disconnect the connectors from the actuator.




4. Check for continuity between the terminals in each switch position according to the table.





Trunk lid release actuator
1. Disconnect the negative battery terminal.
2. Remove the rear trunk lid trim, and then remove the trunk lid switch from the actuator.




3. Check for continuity between the terminals in each switch position according to the table.





Door switch

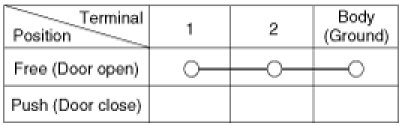

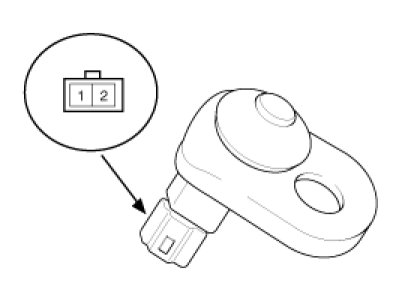

Remove the door switch and check for continuity between the terminals.









Door warning switch
1. Remove the steering column upper (A) and lower (B) shrouds after removing 3 screws.












2. Disconnect the connector (6p) from the door warning switch.




3. Check for continuity between the terminals in each position according to the table.
