Components And Components Location

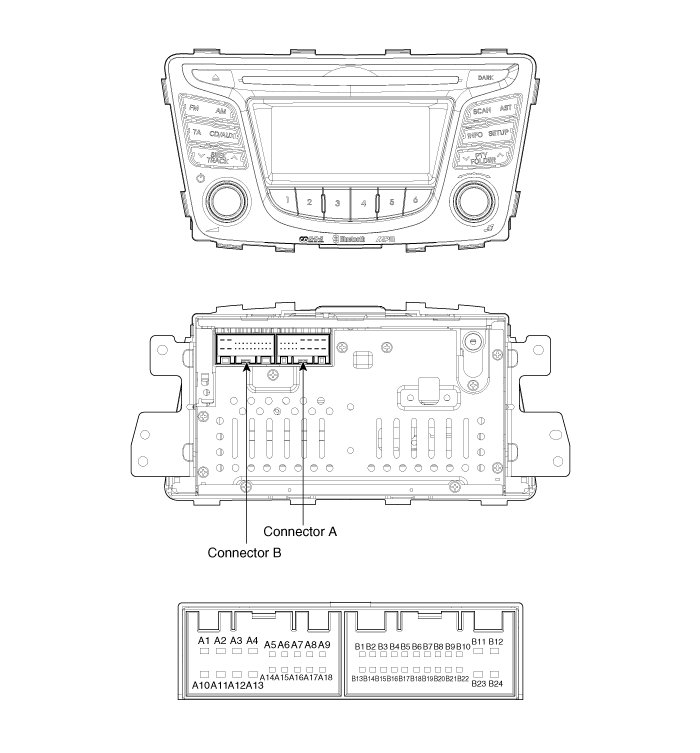

Components(PA710S)

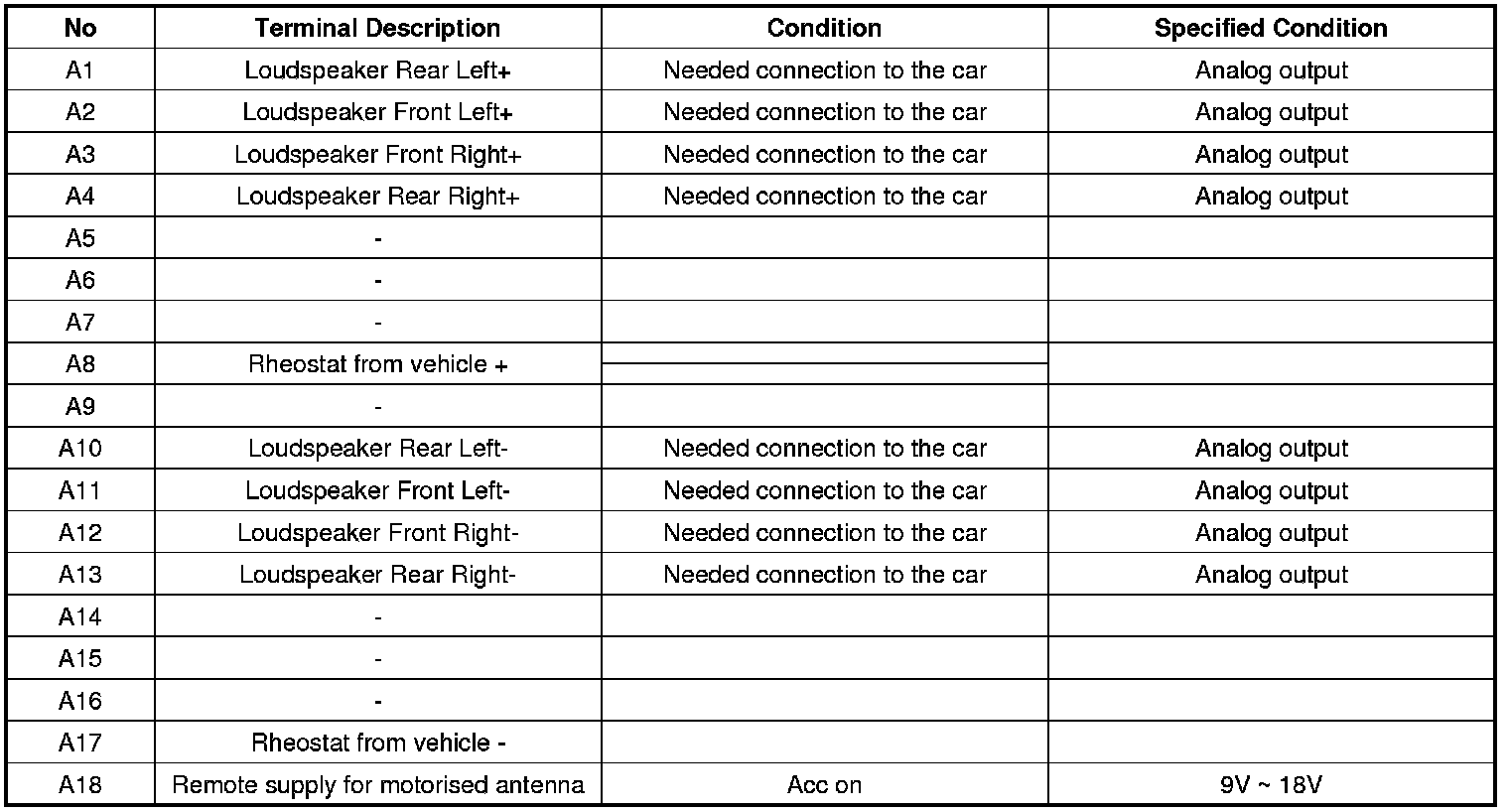

Connector A

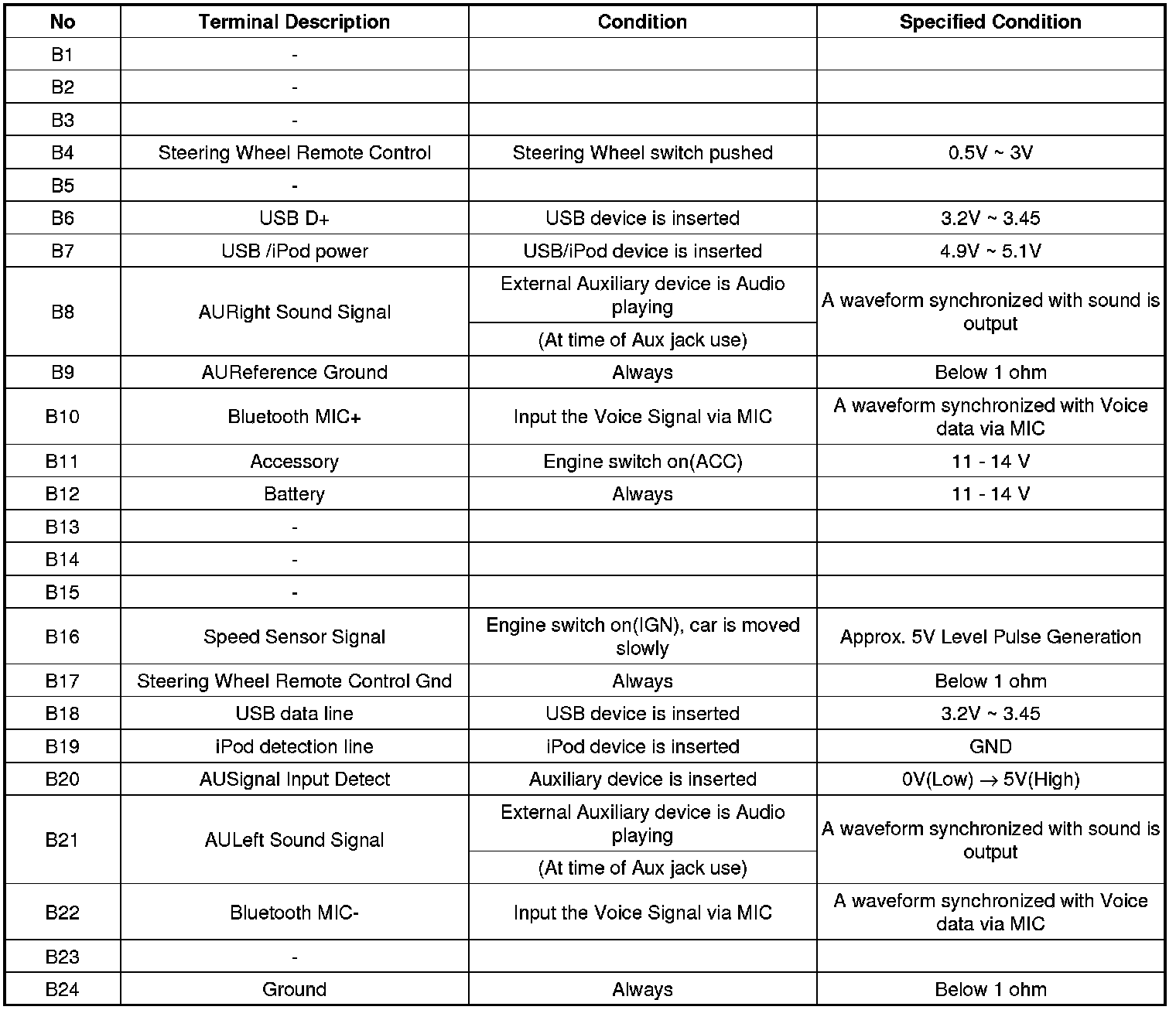

Connector B

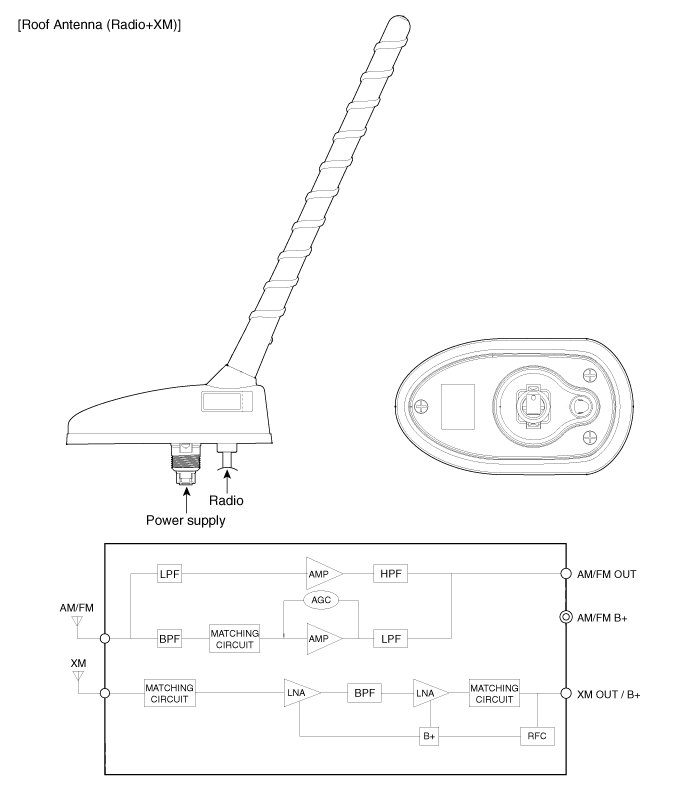

Components(Roof Antenna(Radio+XM))

Components(iPod cable assembly)
