P0223 Throttle/Pedal Position Sensor/Switch - Inspection/Repair:_:Component Inspection

Component Inspection

Check TPS
1. IG KEY "OFF".(Don't disconnect sensors.)

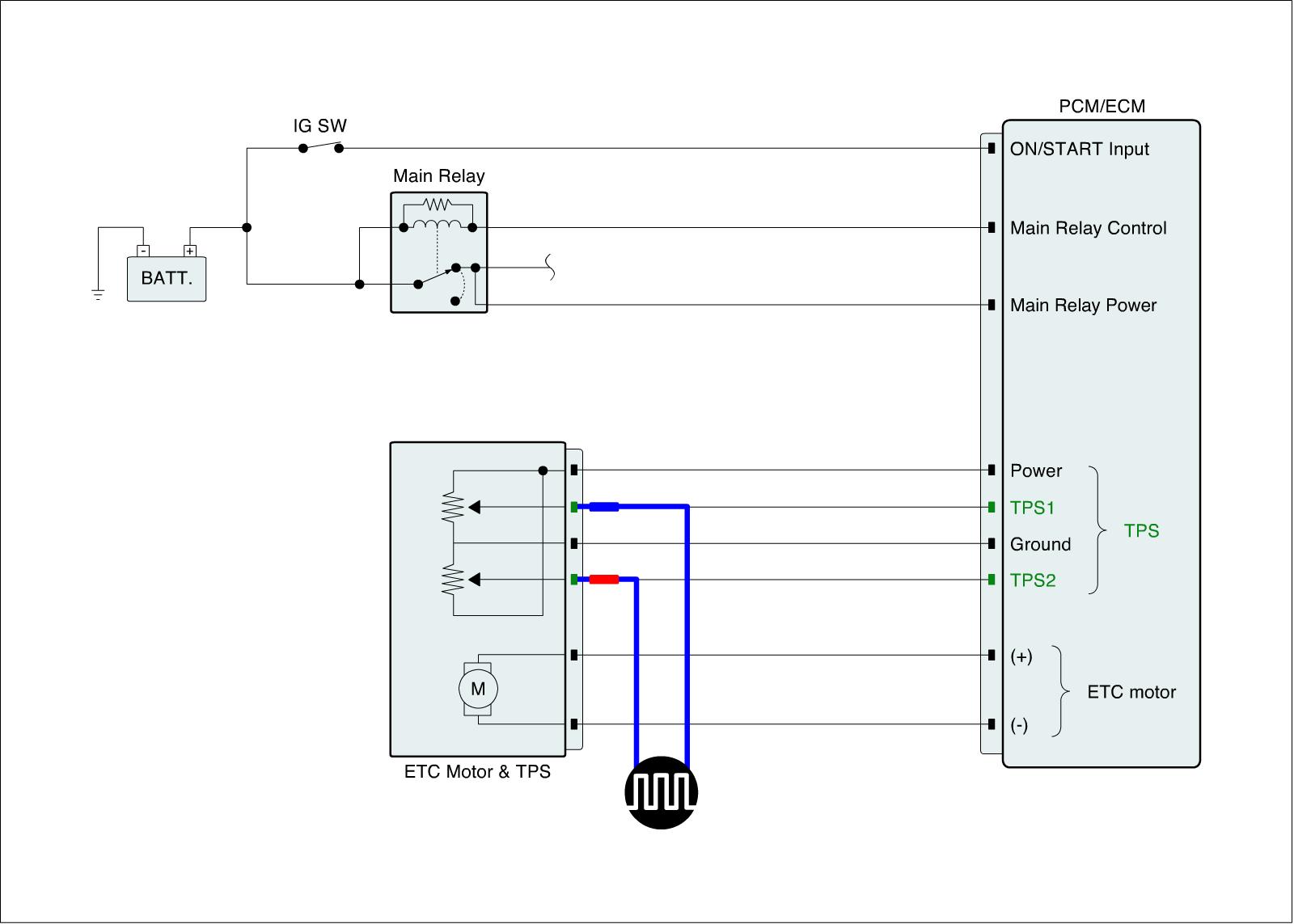

2. Select "Vehicle Scopemeter" in the menu, and connect channel A,B of GDS with signal terminal TPS1,2 harness connector.
3. IG KEY "ON". And check the signal waveforms with stepping on accelerator pedal.

Specification :Refer to Signal Waveform & Data








4. Is the measured signal waveform O.K ?
