Trailing Arm: Service and Repair

Replacement

1. Remove the rear wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

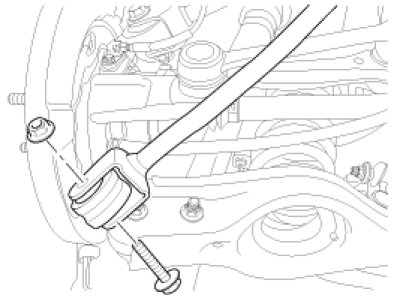

2. Loosen the bolts and nuts and then remove the trailing arm from rear axle.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)

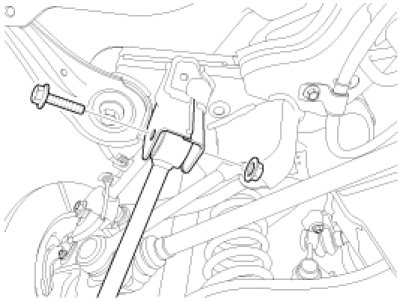

3. Loosen the bolts and nuts and then remove the assist arm from sub frame.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)




4. Installation is the reverse of removal.
