Manual Transmission/Transaxle

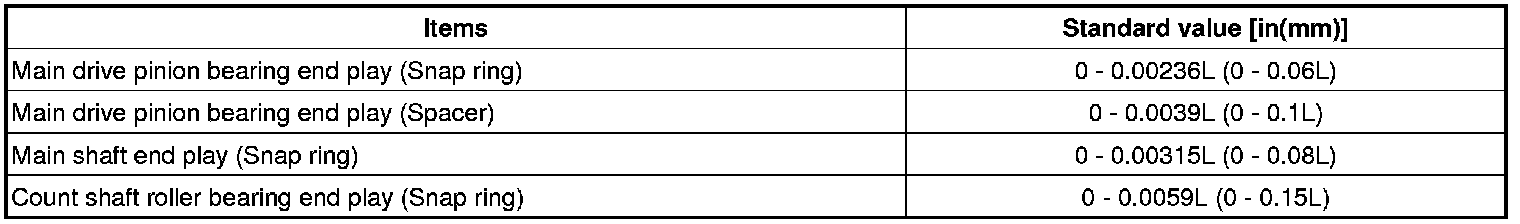

Service Standard

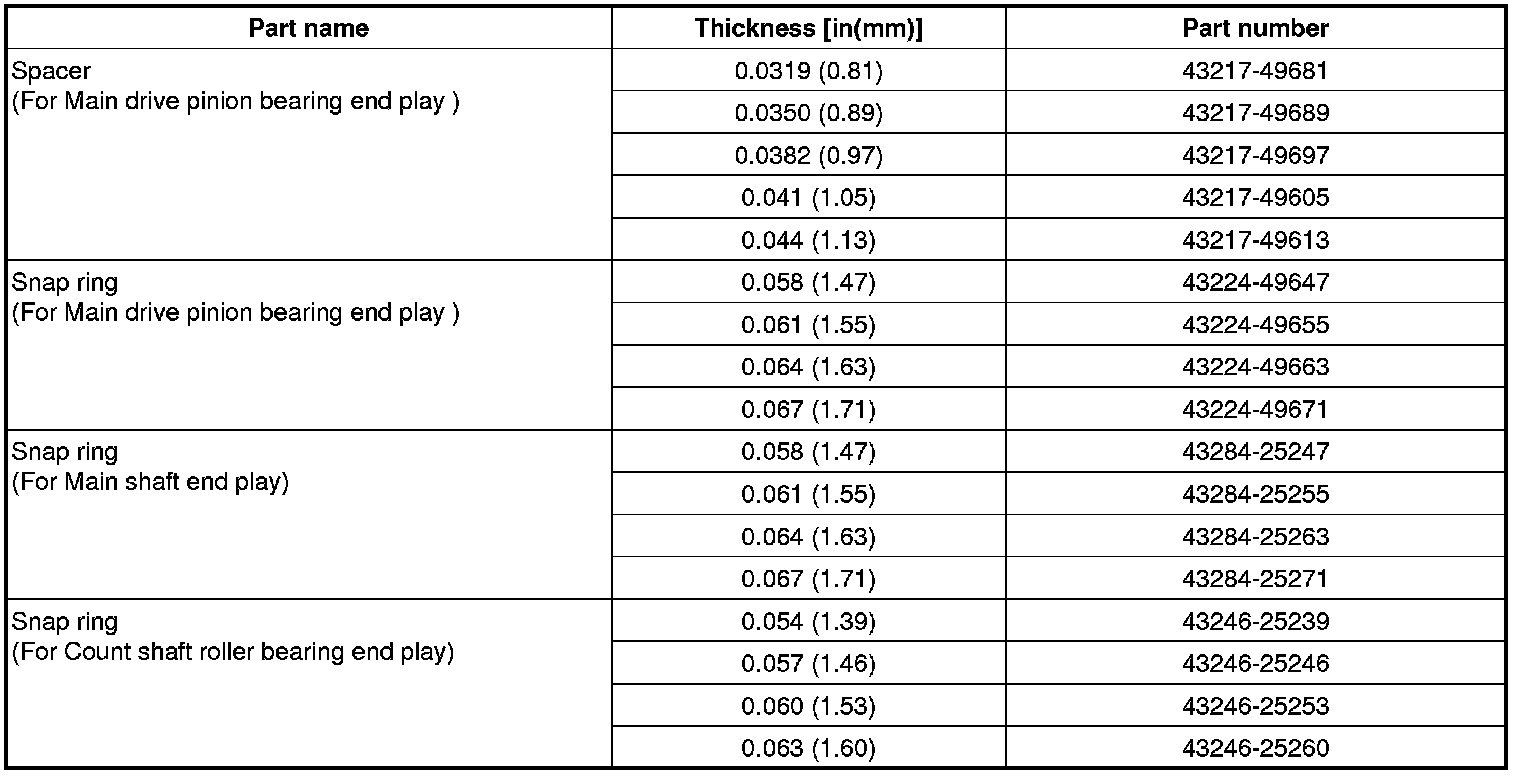

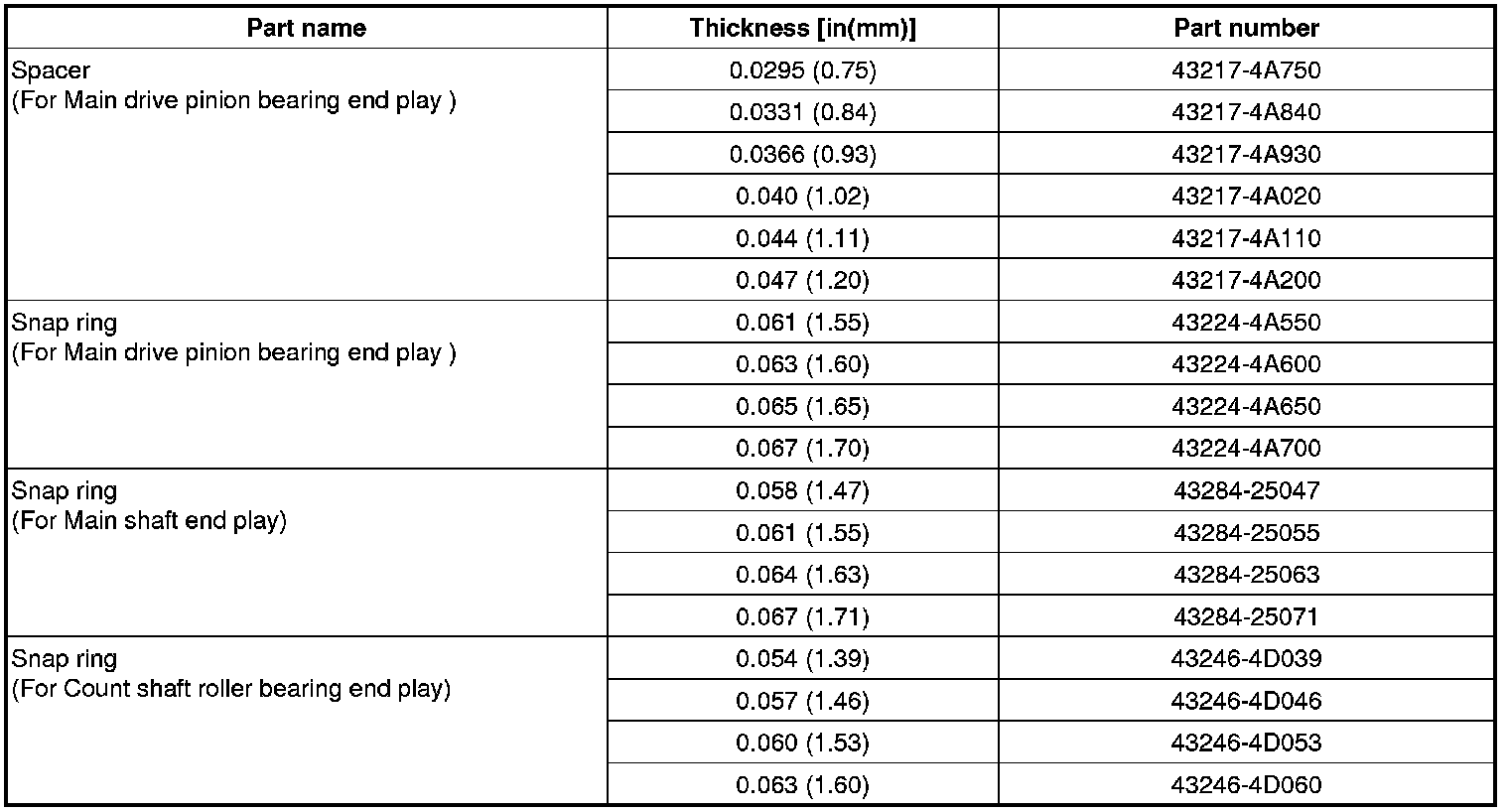

Snap Ring And Spacer For Adjustment
[M6VR1]





[M6VR2]

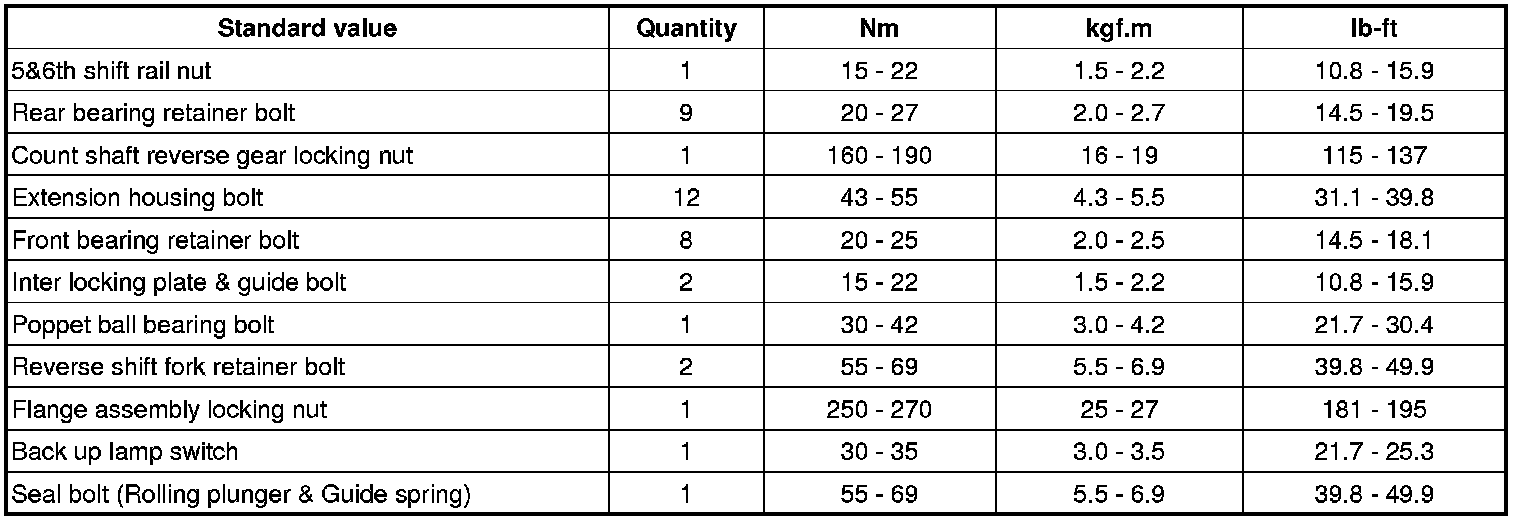

Tightening Torques






WARNING:
Always follow torque tightening levels. Failure to follow such levels can result in parts breaking if over-tightened or loosening if under-tightened. In either case, serious personal injury or death could result to vehicle occupants.

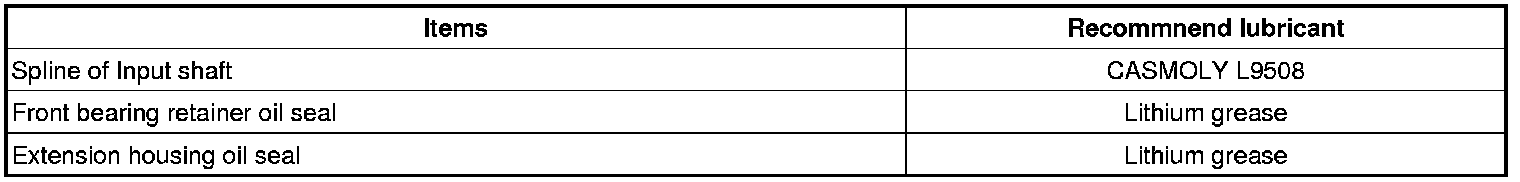

Lubricants
