Home >> Hyundai >> 2011 >> Genesis Coupe L4-2.0L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Prior to 2010.9.14

Prior to 2010.9.14





Specifications





NOTE:
O.D. : Outer Diameter
I.D : Inner Diameter

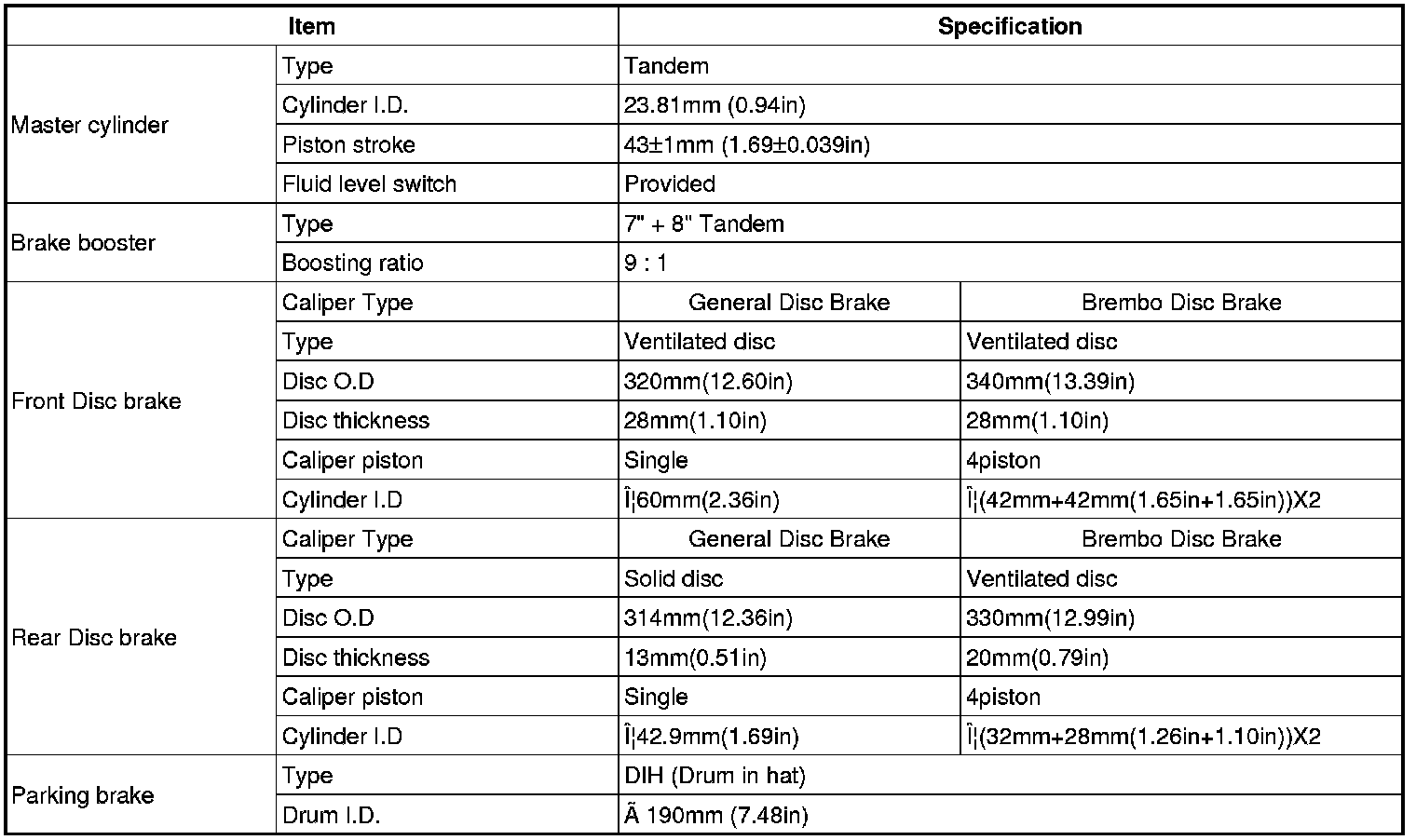

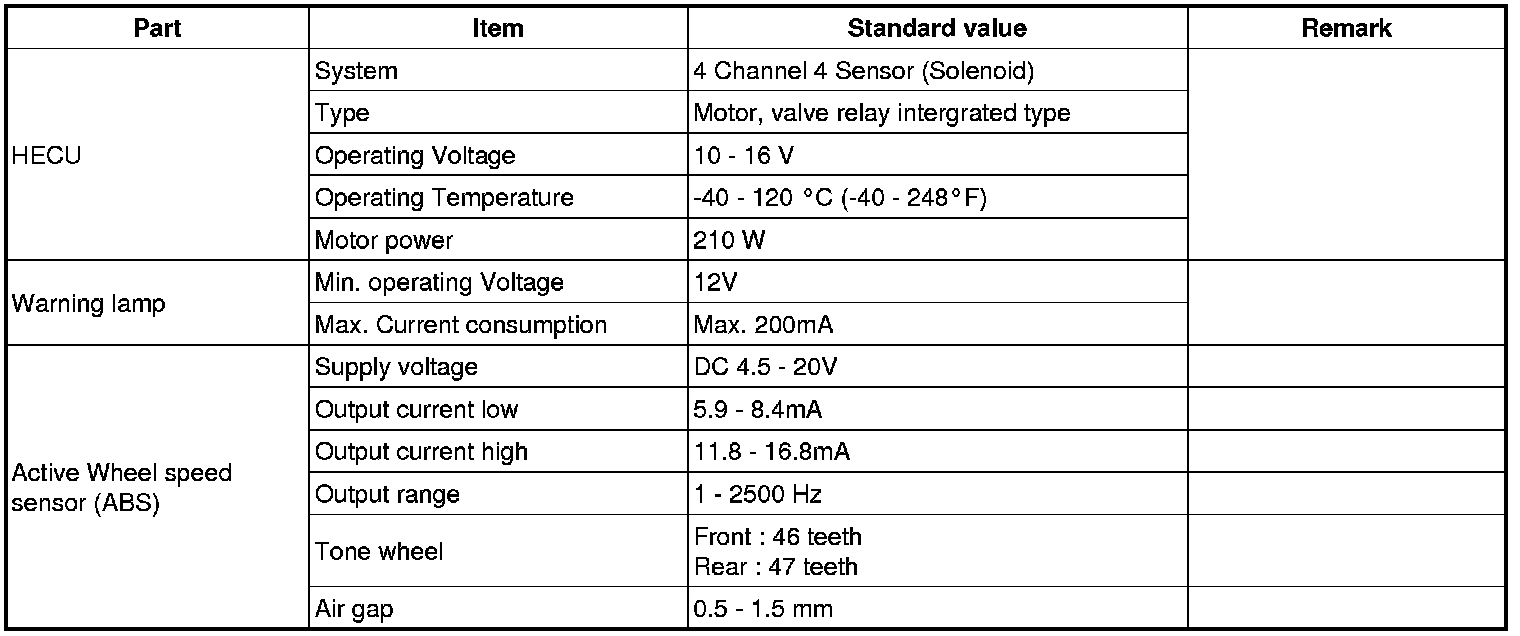

Specification(ABS)

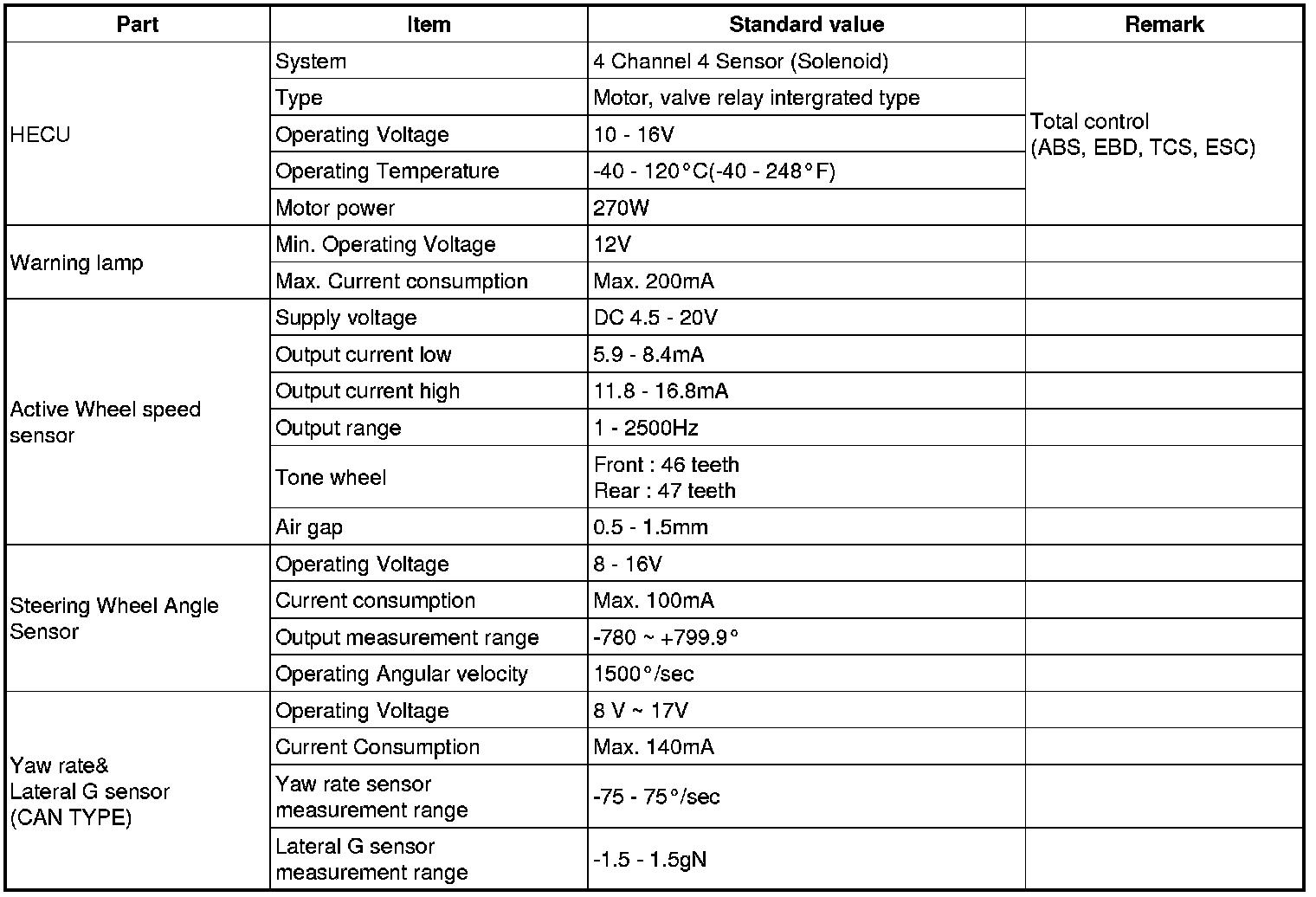

Specification (ESC)

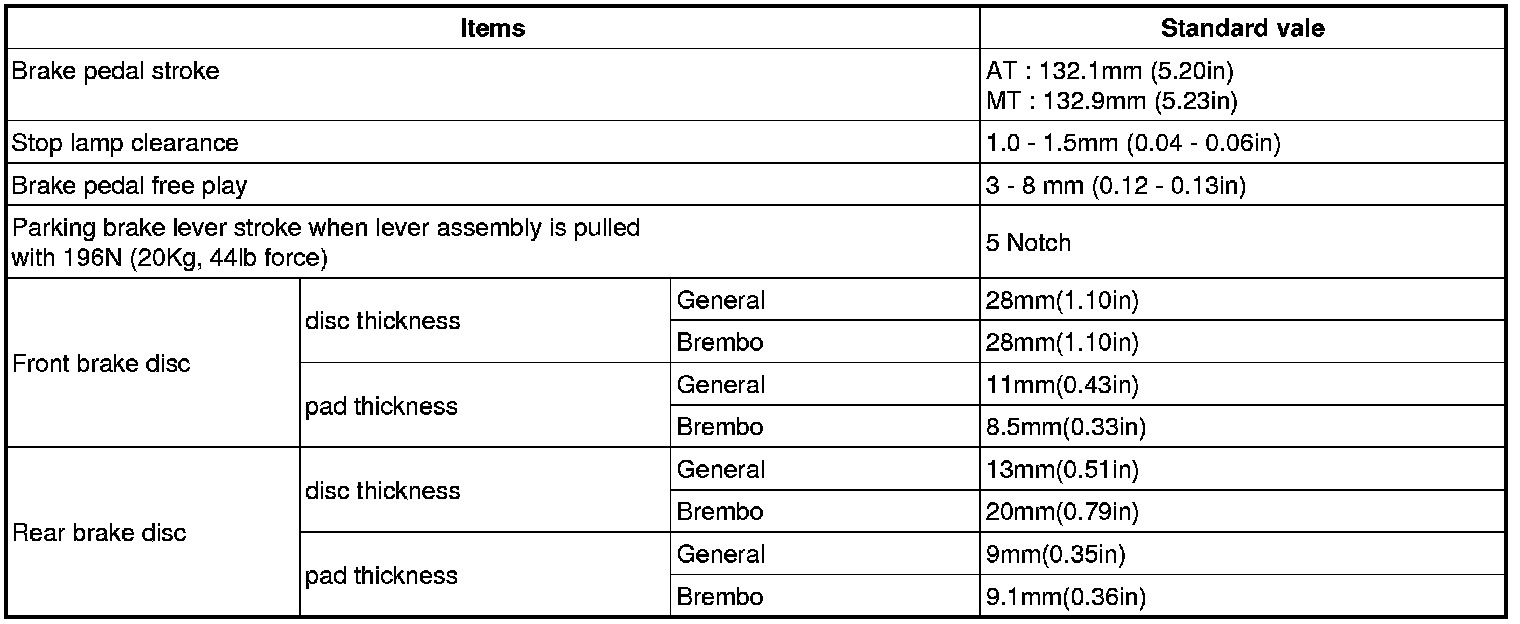

Service Standard

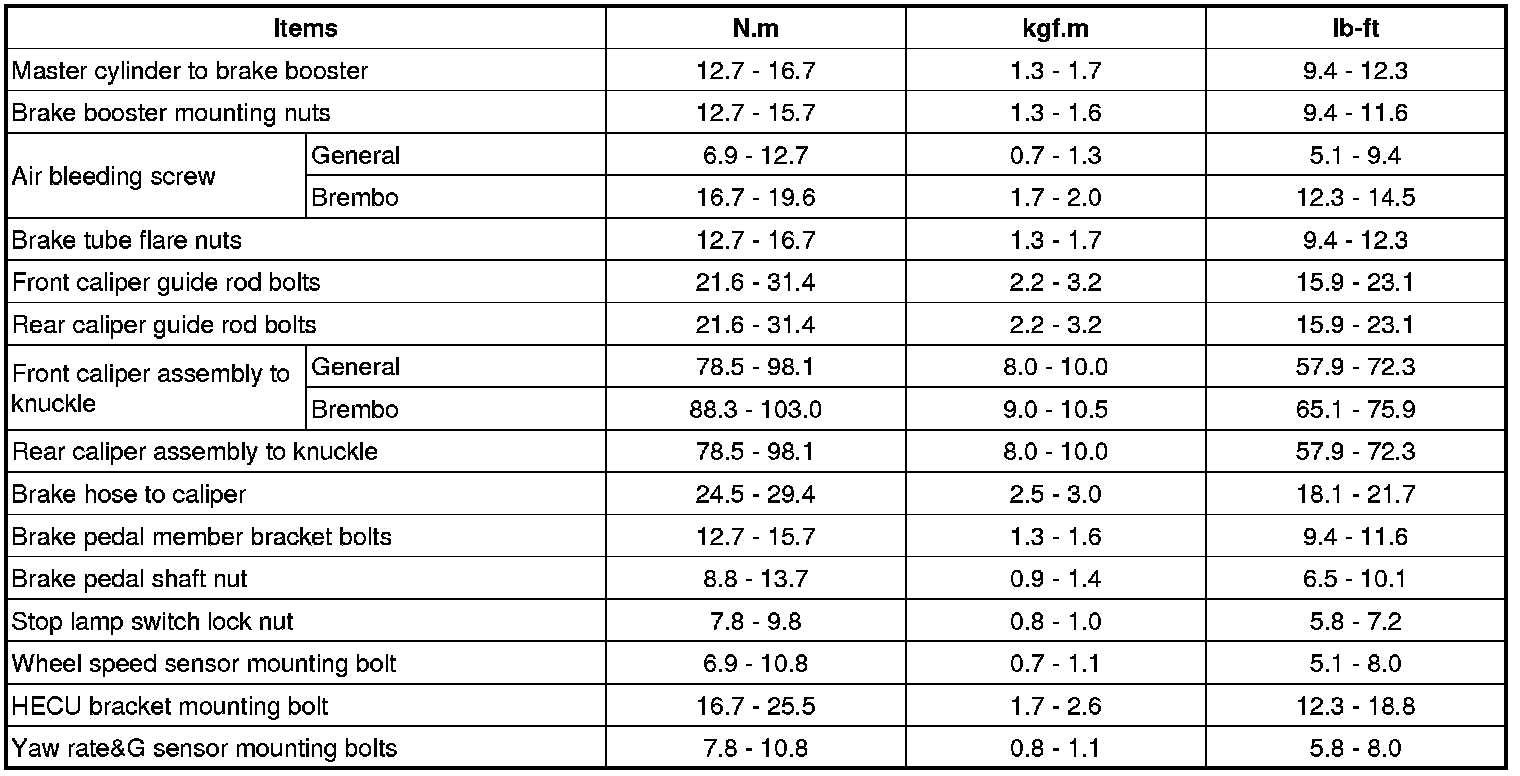

Tightening Torques

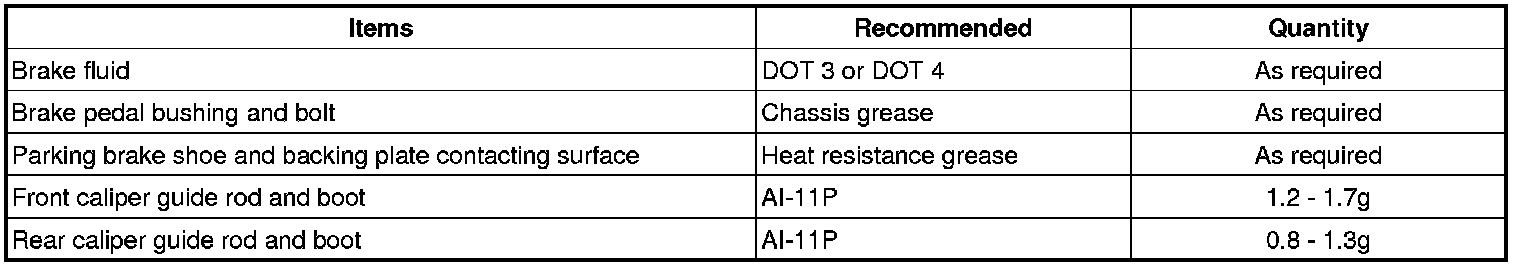

Lubricants
