Steering/Suspension - 2011 Model Year Alignment Specs.

NUMBER: 11-55-001-1

MODEL(S): ALL

GROUP: CHASSIS

DATE: APRIL, 2011

SUBJECT
ALIGNMENT SPECIFICATIONS - 2011 MY

THIS BULLETIN SUPERSEDES TSB 10-SS-008-2 TO INCLUDE ADDITIONAL 2OIIMY MODELS AND A REVISED DIAGNOSTIC FLOW CHART AND DATA SHEET.

Description:

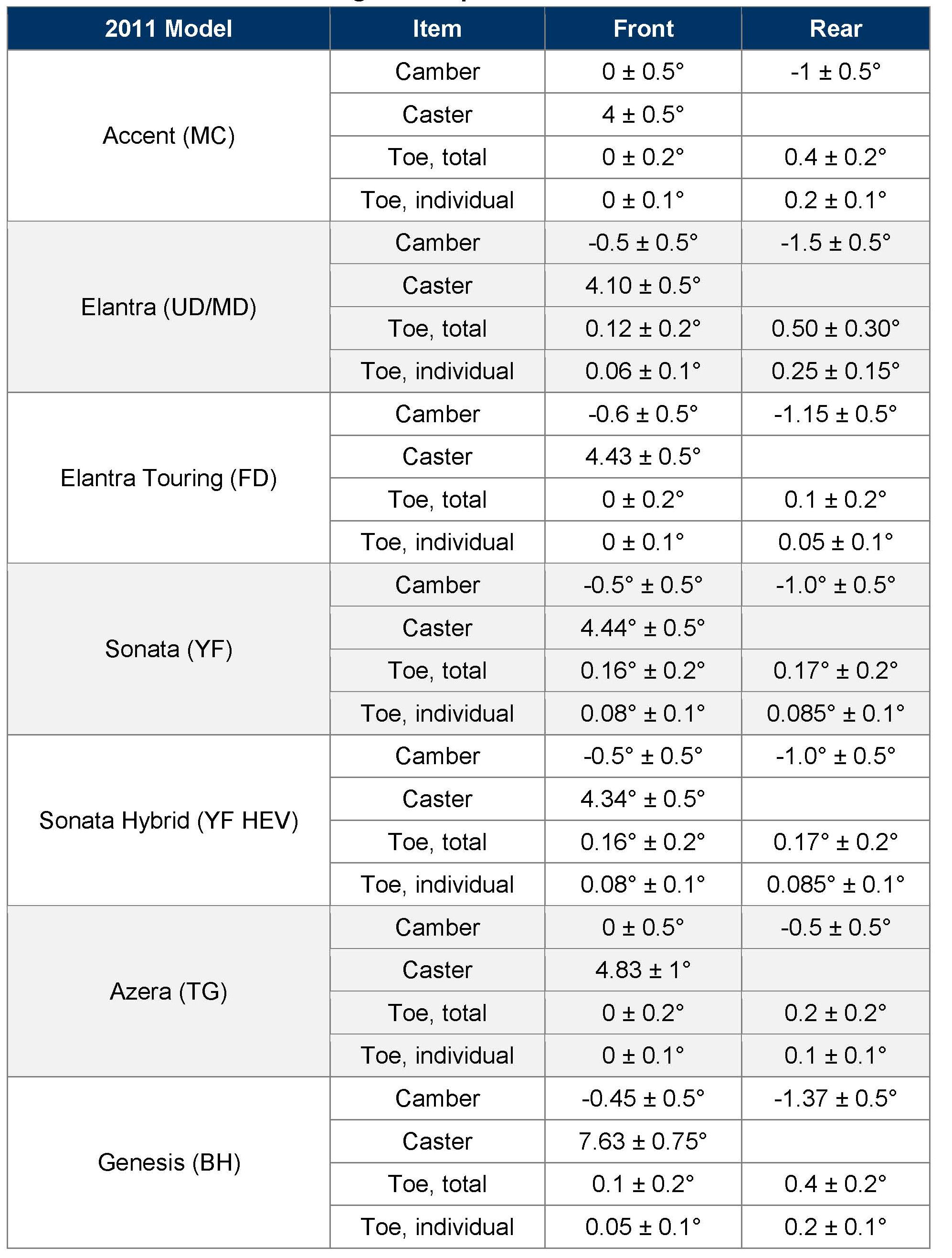

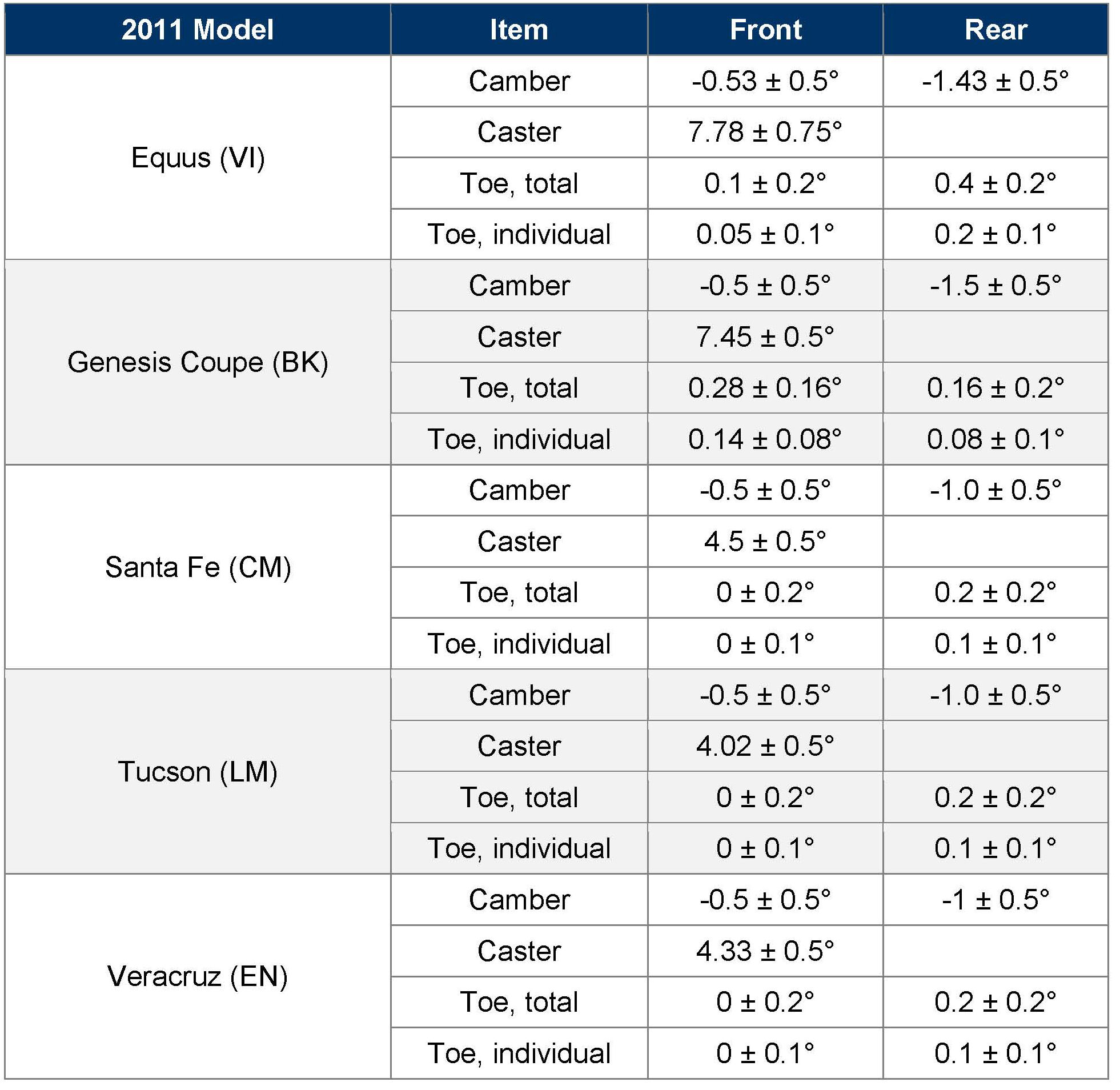

This bulletin provides the 2011 model year alignment specifications.

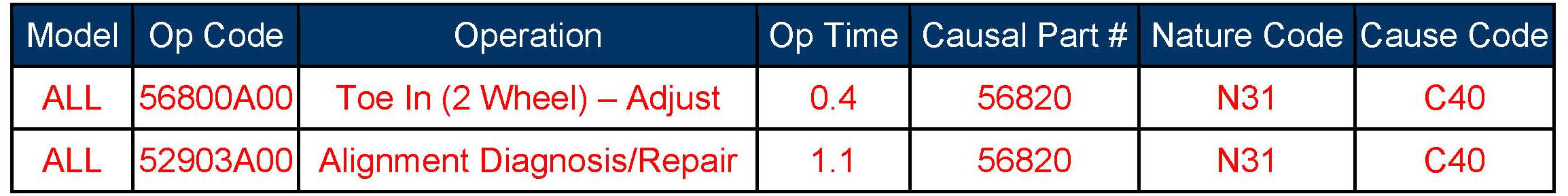

Warranty Information:

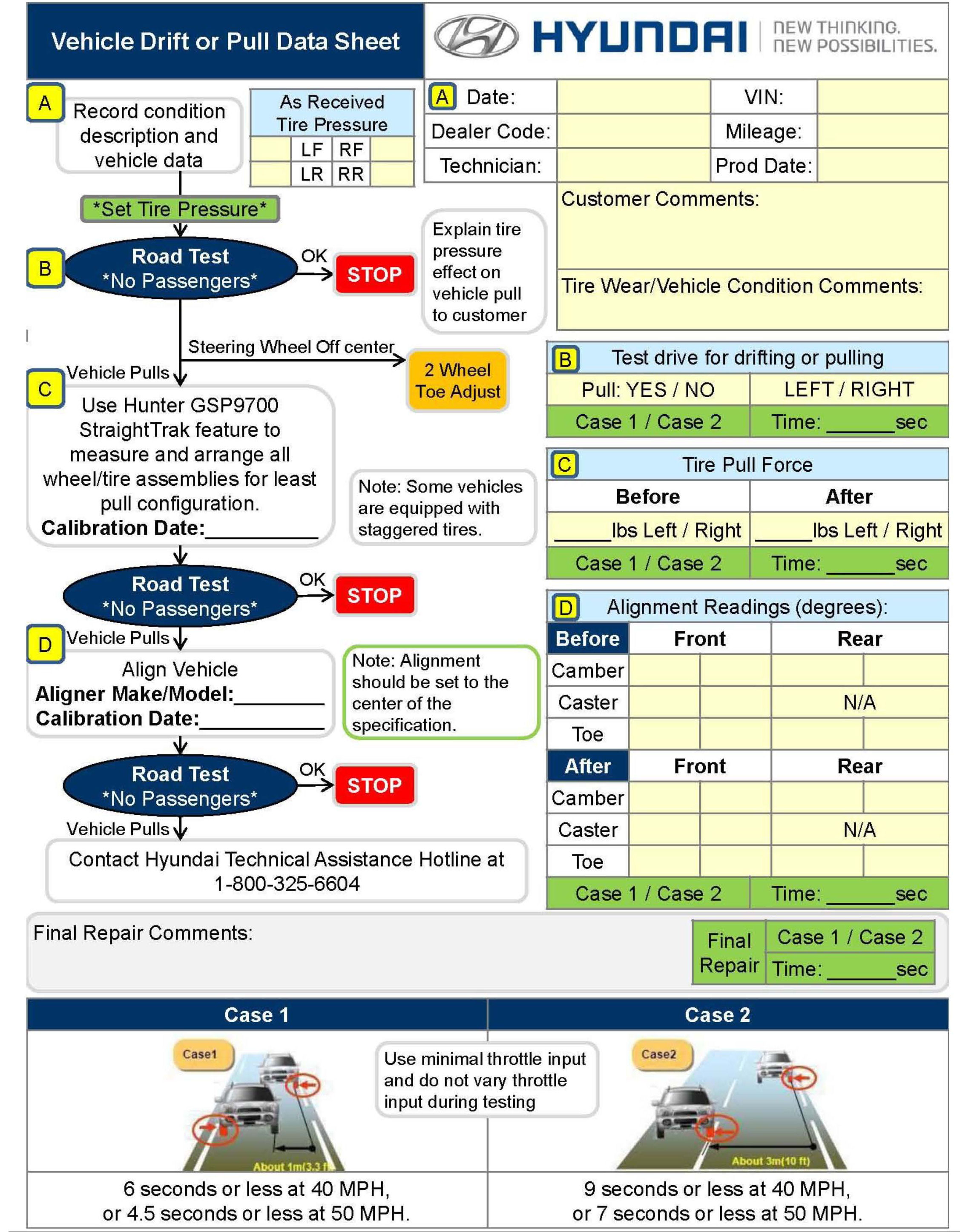

For all vehicle drift or pull complaints and/or alignment warranty claims, the Vehicle Drift/Pull Data Sheet must be filled out as completely as possible and attached to the repair order.

If an alignment is performed, the alignment data sheet showing before and after measurements must also be attached to the repair order, and included in the technician's comment section of the warranty claim.
