Schematic Diagrams

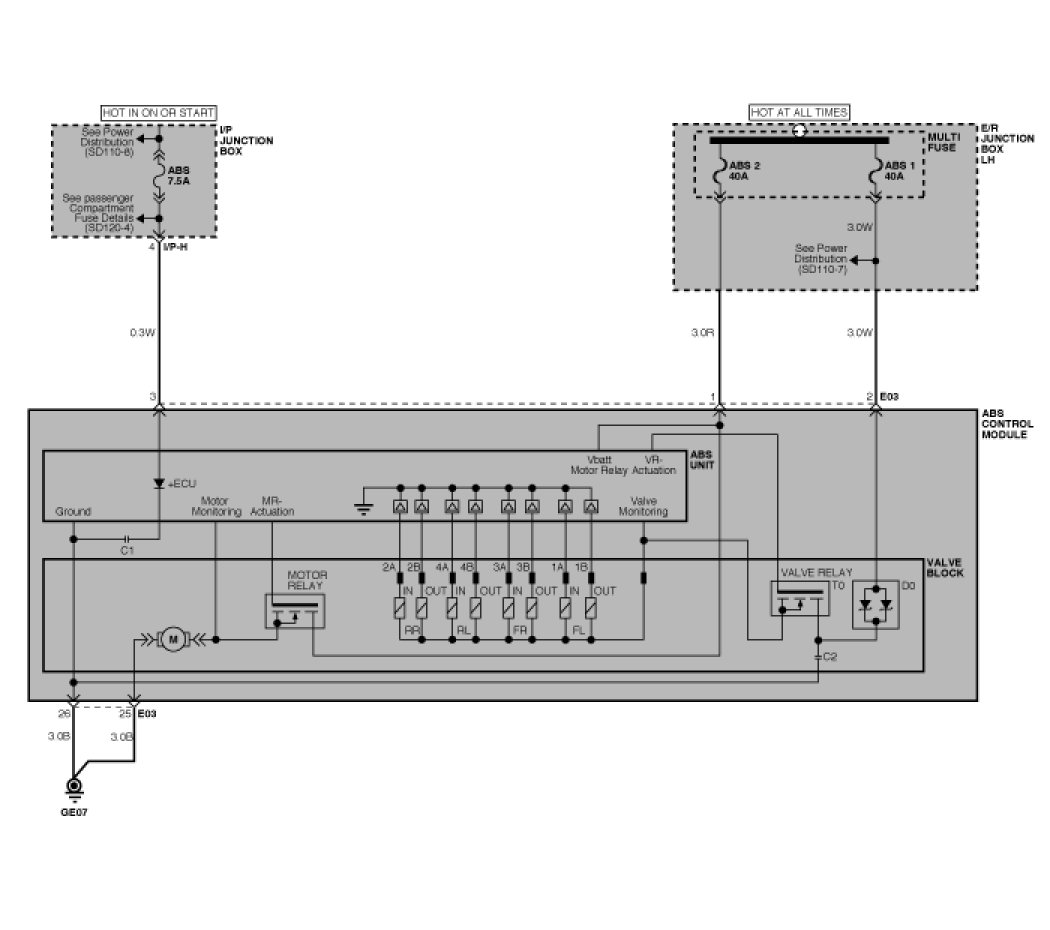

Circuit Diagram - ABS(1)

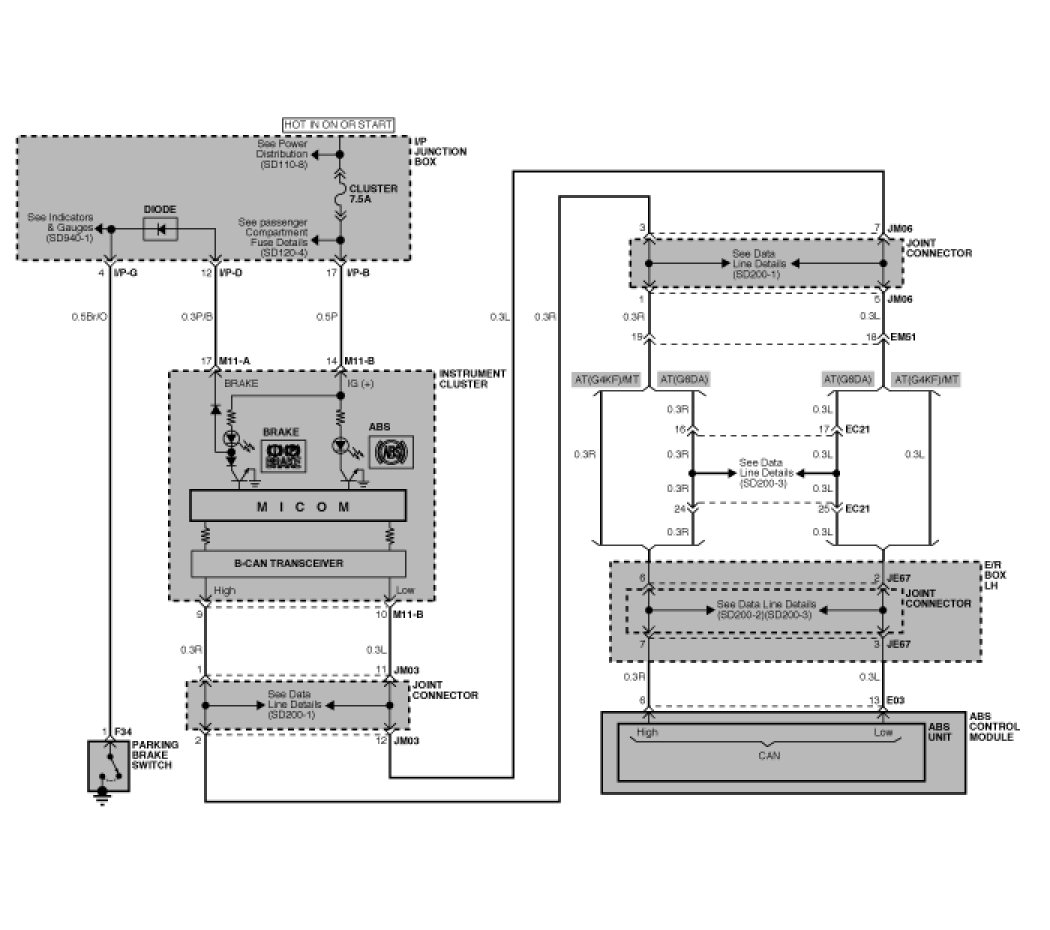

Circuit Diagram - ABS(2)

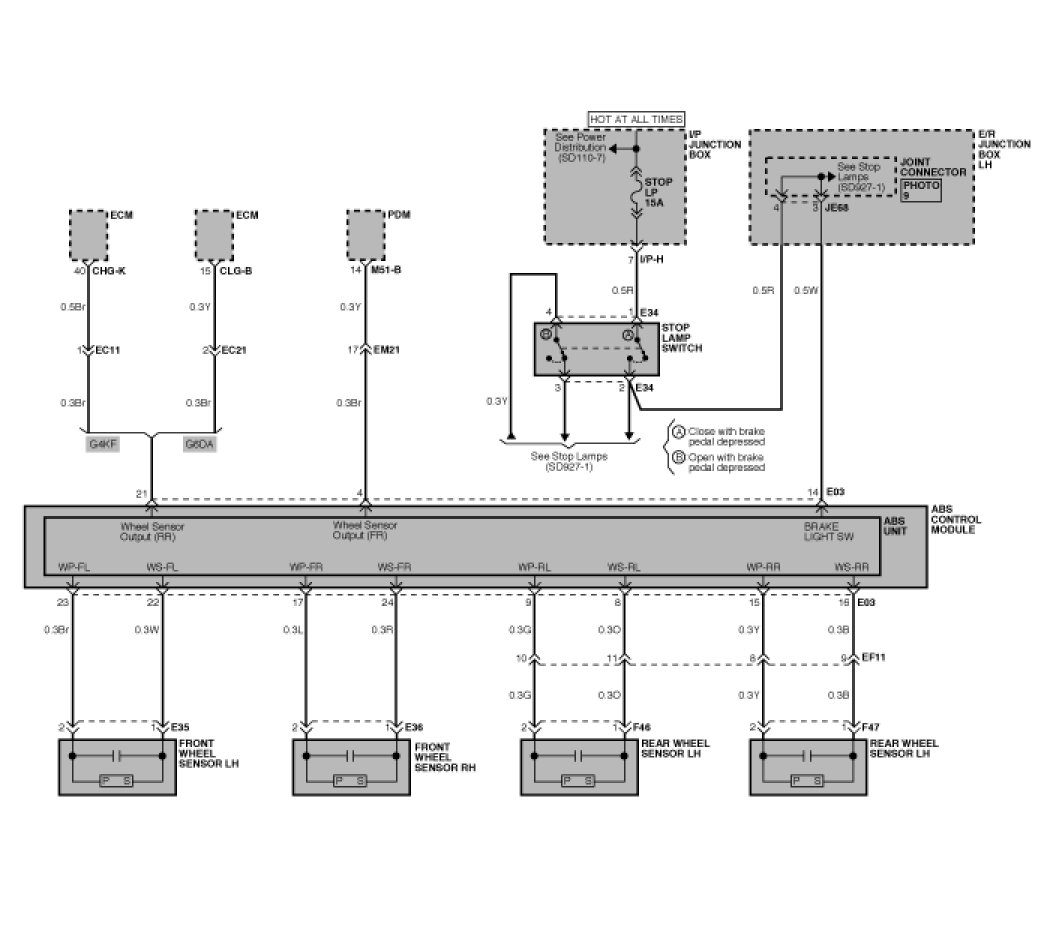

Circuit Diagram - ABS(3)

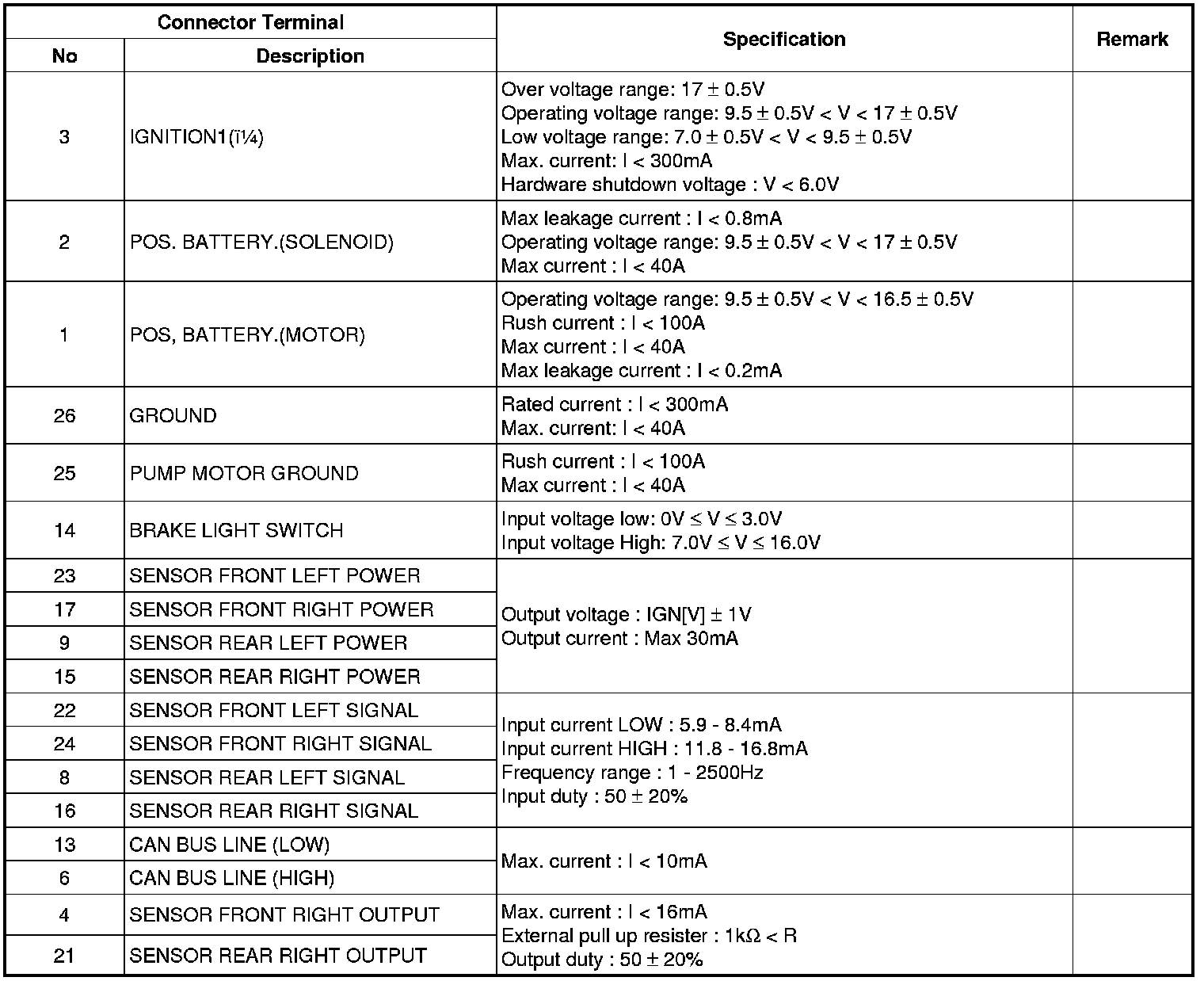

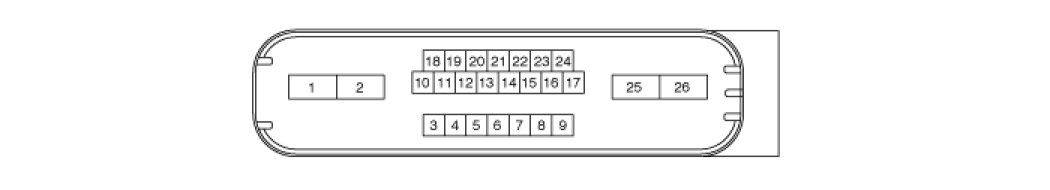

ABS Connector Input / Output
