Repair Procedure

Inspection

Check it by the procedure below to see if the function of the ECM is normal.
1. Turn the ignition key to the "ON" position.
2. Press the (A) button to turn the automatic dimming function ON/OFF.
3. Cover the forward looking sensor(B) to stop functioning.
4. Head a light to the rearward looking sensor(C).
5. The ECM should be darkened as soon as the rearward looking sensor detects the light.

NOTE:
If this test is performed in daytime, the ECM may be darkened as soon as the forward looking sensor is covered.

Removal

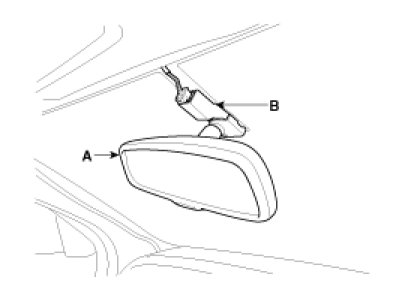

1. Remove the mirror wire cover(A).




2. Disconnect the inside rear view mirror connector(B).

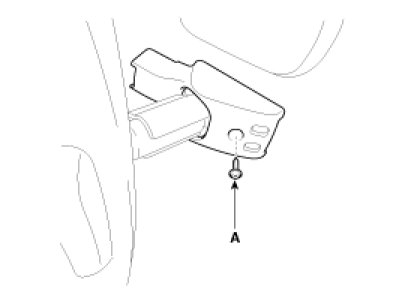

3. Loosen the mirror mounting screw(A).

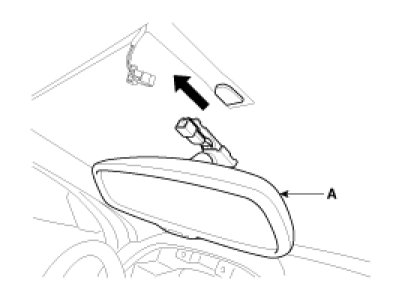

4. Remove the inside rear view mirror(A) pulling it upside carefully.

NOTE:
Make sure the mounting bracket of the mirror not to be damaged.





Installation

1. Install the inside rear view mirror.
2. Connect the inside rear view mirror connector.
3. Install the mirror wire cover.
