Component Inspection





Engine Control

U0101 Lost Communication With TCM - Component Inspection

Component Inspection

1. Ignition "OFF"

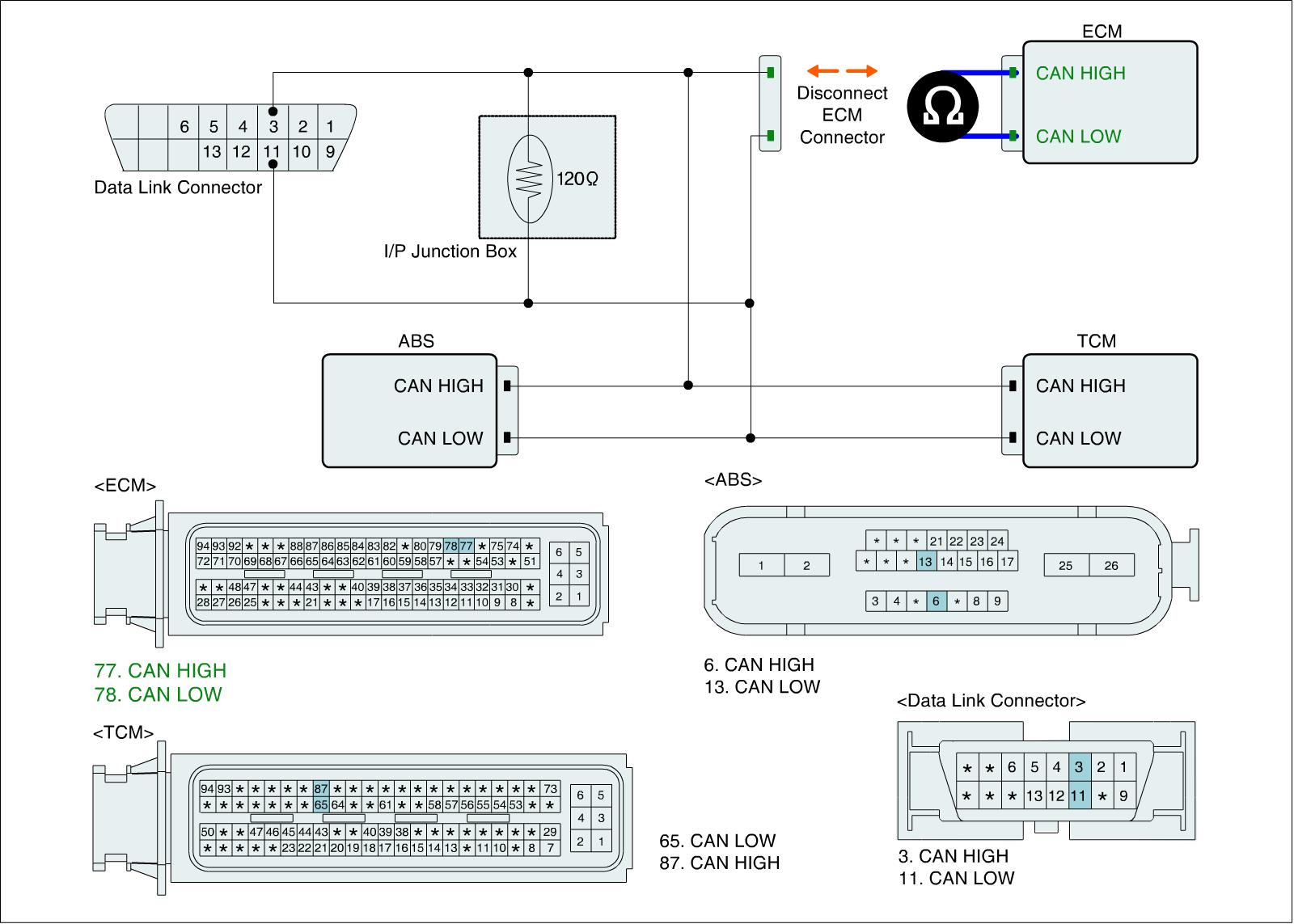

2. Measure resistance between High signal terminal and Low signal terminal of ECM connector (ECM side).

Specification : Approx. 110 - 130 Ohms

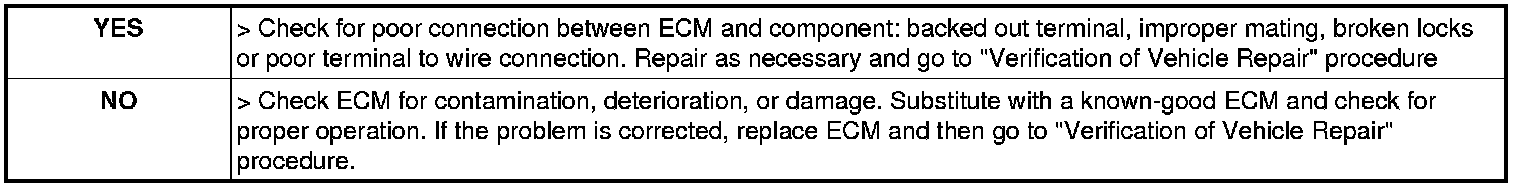

3. Is resistance within the specification?
