P1696 Immobilizer-Authentication Fail - Scantool Diagnostics

Monitor GDS Data

1. IG KEY "ON" & Engine "OFF".
2. Erase DTC after connecting GDS.
3. Check Smart Key ECM status parameter if DTC is retrieved.

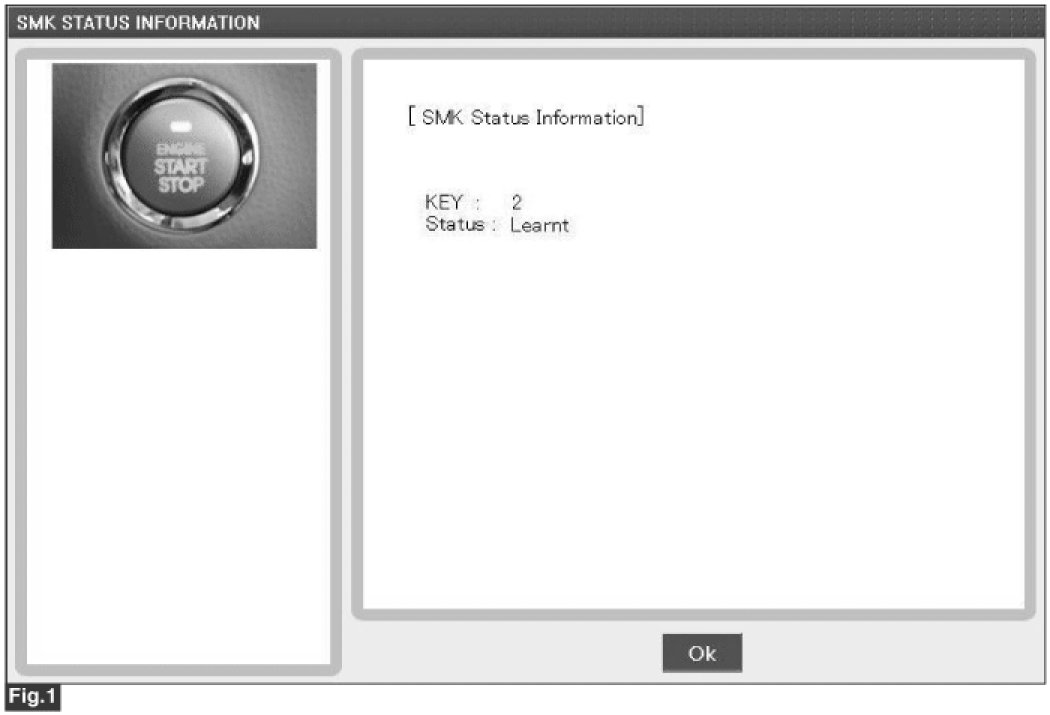

Fig.1) It shows that 2 (two) FOB key is registered, Smart Key ECM is learnt status.

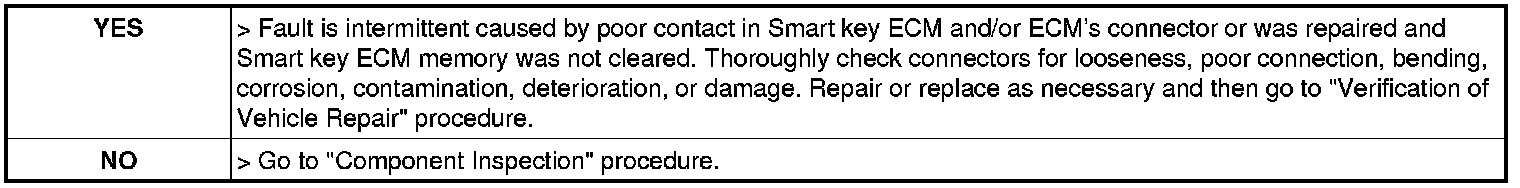

4. Is the Smart key ECM learnt status?
